1/8 hp reversible 115V ac pm motor variable speed drive
115V AC 1/8 hp PMDC Electric Motor Variable Speed Drive Reversible

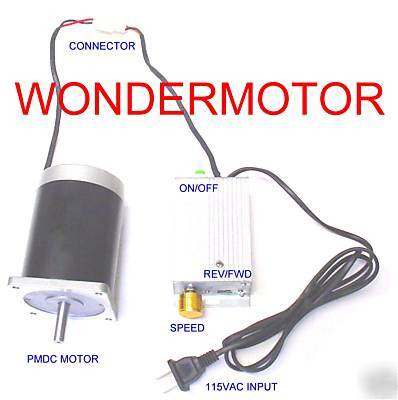

This is a compact PMDC (Permanent Magnet Direct Current) electric motor with a variable speed
controller that takes a regular 115VAC input from a regular appliance outlet. Due to properties of
permanent magnet stator, this motor is able to generate great torque at low speed.
Controller: On/Off switch, variable speed knob, reverse/forward switch, 115vac power cord in length of
Motor: No load@5837RPM; 75W@0.17N-m(1.6 in-lb)@4000RPM; 101W@0.377N-m(3.4
in-lb)@2566RPM. Basically, the lower the speed, the higher torque it's going to output. A torque curve
can be plotted by simply using the 3 data points provided. Shaft is 10mm in diameter with flat and 32mm
in length. Square flange is measured to be 80mm by 80mm. Diameter of mounting hole pattern is
93.5mm wide. Each mounting hole is measured to be 5.5mm in diameter. Distance from the front face
of square flange to the back of motor is 111mm. Cylindrical portion of the motor has a diameter of 78mm
Connection between motor and controller is 20 inch(508mm) long.
