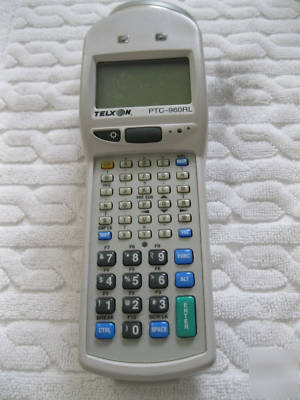

Telxon ptc 960RL data collector w/ integrated scanner
DATA COLLECTOR W/ INTEGRATED SCANNER
Pulled from working environemnt, minor scrapes/scuffs, but does not compromise the functionality of this item
Size: 8 lines by 21 characters
Screen icons: Shift Mode Enabled, Caps Lock
Enabled, Func1 Is Activated, Func2 Is
Activated, RF Out of Range, Low Battery
Resolution: 128 x 64 graphic pixels
Battery power: 7.2-volt, 500-mAh rechargeable nickel cadmium
9-volt alkaline battery (optional)
temperature: (-18 to 49 degrees C)
temperature: (-29 to 60 degrees C)
Electrostatic 15-kV shock causes no damage;
discharge: 8-kV shock causes no lock-up or
RAM: 128 KB, expandable to 1 MB
256-KB application flash EPROM
Width: 3.0 in/7.6 cm (at the display)
2.64 in/6.7 cm (at the keyboard)
Depth: 1.4 in/3.6 cm (at the keyboard)
Weight: 16.4 oz/.47 kg (with alkaline battery)
17.9 oz/.51 kg (with battery pack)
Processing speed: 10 MHz (terminal processing)
Types: 900-MHz or 2.4-GHz DATASPAN
ftp://symstore.longisland.com/Symstore/techpubs/manuals/mobile/pdf/2156870102.pdf
