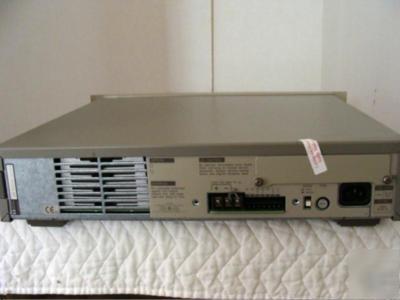

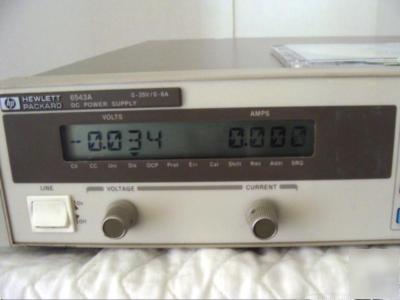

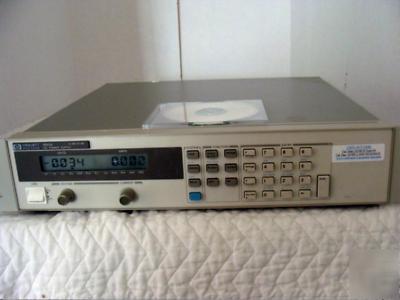

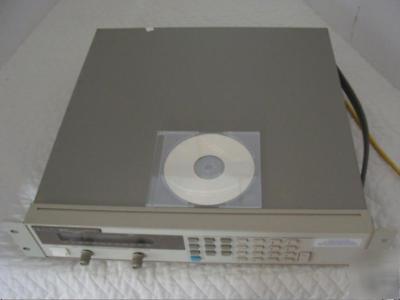

Hp - agilent 6543A 0-35V/0-6A 200 watts dc power supply
The Agilent 6543A models are 200 Watt, single output, series pass regulated power supplies, with front panel and analog programming of output voltage and current. Up to five front panel settings can be stored in nonvolatile storage for later recall. This reliable series of 200 W dc power supplies can be controlled either from the front panel or via an analog programming voltage. When used in a test system, the fast up and down programming helps decrease test time. Quickly reacting protection features, including fast crowbar, CV/CC mode crossover and over-voltage protection help protect your valuable assemblies from damage. The linear topology produces very low ripple and noise, which allows you to make extremely accurate measurements of the devices which you are testing.
FEATURES: *** Analog programming of output voltage and current *** Self-test initiated at power-up *** Electronic calibration from front panel *** Five nonvolatile store and recall states *** User-defined power-on state *** Fan-speed control to minimize acoustic noise *** Over-voltage and over-current protection *** Over-temperature protection.
Lab bench use is enhanced by the fan speed control, which helps to minimize the acoustic noise.
For more information, here is the Data sheet: http://www.tequipment.net/pdf/Agilent/Agilent654x_May04.pdf
