Brooks automation tlg-RS232 rfid transponder reader+ant
Brooks Automation TLG-RS232 RFID Transponder Reader+ANT

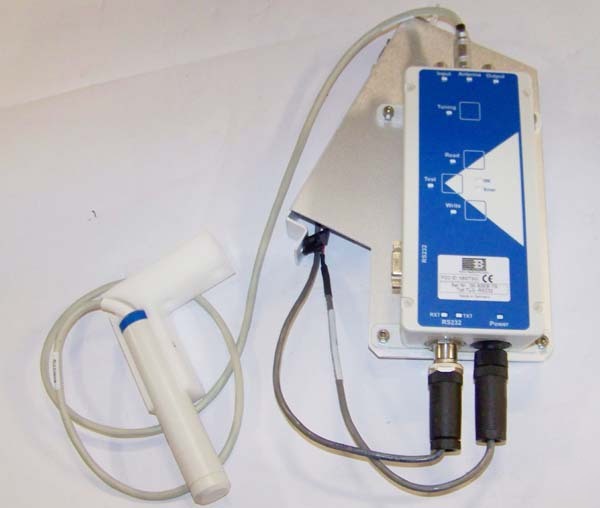

This is a Used Brooks Automation TLG-RS232 RFID Transponder Reader System. This item is a high-frequency identification system that uses FM transmission in essence like a forgery-proof electronic identity disk. The unit was pulled from a machine that was decommissioned but we do not have a way of testing it. The item includes 2 cables and the antenna with mount housings. Cosmetically, it is in excellent condition with minor signs wear. The photos are of the actual item for sale. Only what is shown in the photos is included.
* Operation temperature: 0 C to +50 C/ 32 F to 122 F
* Stock temperature: -25 C to +70 C/ -13 F to +158 F
* Permissible humidity @ 50C : 25 - 80 %
* Transmitter frequency: 134.2 kHz
* Max. transmitting level in 3m distance: 104 dB V/m
* Typical period of charging impulse: 50ms
* Max. repeat of reading: 4/s
* Max. repeat of programming: 1/s
* Housing material: ABS (UL94-V0)
* Serial interface: RS232 300 Bd 115,2 keyboard
