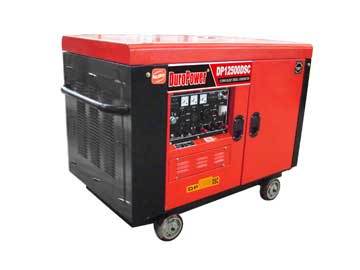

Duropower DP12500DSC 12500W silent diesel generater pro
12500W Silent Diesel Generator
The DP12500DSC Features & Specifications
1. 22.0HP 954cc Air Cooled Twin Cylinder Diesel Engine
22.0HP, 954cc, Twin Cylinder, Air Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff, Smooth Running & Elec. Start.
3. Long 10-Hour Run Time with fuel displacement 58.22 cu. In
4. 12500W Surge Output with self-excitation and constant voltage
All Steel 10.0 Gallon Fuel Tank
Full Power Panel With Engine Shutoff Switch, Voltmeter, Hour meter, Ampere Meter, Frequency Meter, Fuel Meter, Normal Lamp, Water Temperature Lamp, Generator Temperature Lamp, Oil Alert Lamp, Heat Switch, AC & DC Terminal, AC Circuit Breaker, AC & DC Protector & Power Outlets, ATS connector.
8. 3 Pole Single Phase 120V AC & 2 Pole 120V/240V AC & 1 Pole 12V DC Output Generator
2 Pole 120V/ 60Hz Max Current 20A AC Output (NEMA 5-20R)
1 Pole 120/240V Max Current 50A AC Output (NEMA 14-50R)
Four 4 Wheels & Handle Bar, Instructions Included
