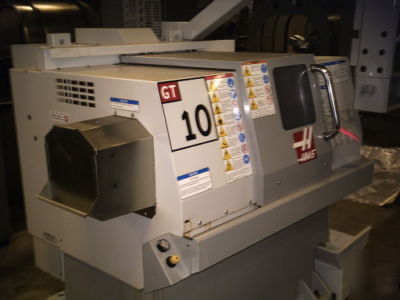

2007 haas GT10 cnc turning center lathe demo unit

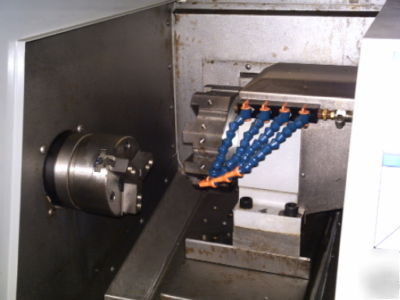

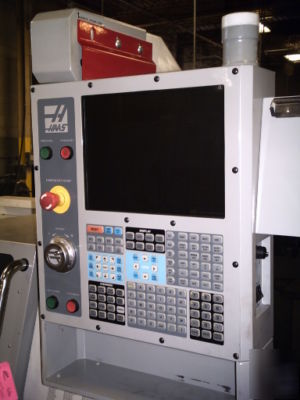

This GT10 was only used as a demo unit and has less than 300 hours on it. It comes equipped with:a high flo coolant tank and pump, 15" color LCD monitor, USB port, ridged tapping, user defined macros, spindle orientation, bolt on style turret, visual quick code programming, and a 5.3" 3 jaw chuck. Please contact Everett at (***)-930-9646 or Jason at (***) 790-3358 with any questions.
Control.......................................................................................................... Haas
Max Turning Diameter.................................................................................... 10"
Max Turning Length.......................................................................................... 8"
X-Axis Travel................................................................................................... 6"
Z-Axis Travel.................................................................................................... 8"
Max Thrust X.......................................................................................... 2400 lbs
Max Thrust Y.......................................................................................... 3700 lbs
Rapid Traverse Rates (X, Y)................................................................... 710 IPM
Chuck Size..................................................................................................... 5.3"
Spindle Bore................................................................................................ 1.38"
Draw Tube Bore........................................................................................... 1.18"
Spindle Nose................................................................................................ A2-5
Spindle Motor............................................................................................ 7.5 HP
Spindle Speeds.................................................................................... 3,000 RPM
Spindle Torque................................................................... 42 Ft Lbs@ 475 RPM
Turret Stations.................................................................................................... 8
Machine Weight.................................................................................... 3,080 Lbs
