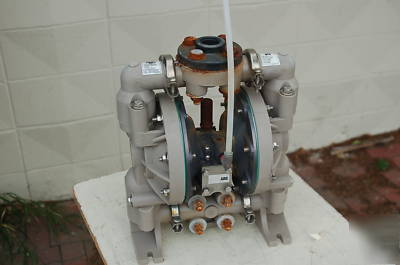

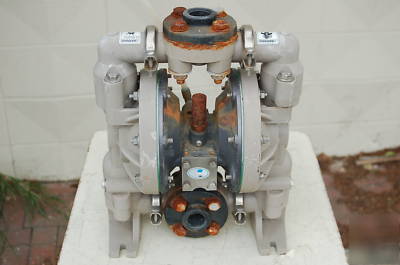

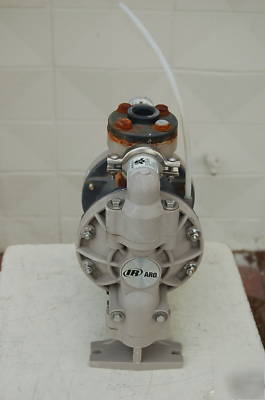

Aro 6661A3-344-c non metallic double diaphragm air pump
No Reserve!!!!! Pulled Working!!! Cost $over $1300.00!!!
* Nonmetallic Air-Operated Double Diaphragm Pumps
* Easily pump slurries, solvents, and high-viscosity liquids such as paints and waste oils.
* Ingersol Rand/ARO pumps are constructed of highly fatigue- and abrasion-resistant materials. Air-pressure air valve design helps prevent stalling. Dayton pumps have a spring-assisted air valve with proprietary seal rings that never require lubrication.
* Self-priming to 15-ft. wet, 10-ft. dry
* Highly resistant to many solvents and a wide variety of nonaggressive water-based liquids.
* WARNING: Use only with nonflammable liquids compatible with pump component materials and in nonflammable/nonexplosive atmospheres.
Non Metallic Diaphragm Pump, Air Inlet NPT 1/4 Inch, Water Flow 35 GPM, NPTF Inlet/Outlet 1 Inch, Maximum Operating Pressure 120 PSI, Ball Material Teflon, Body Material Polypro, Check Seat Material Polypro, Diaphragm Material Teflon, Maximum Flow 53 CFM, Maximum Flow 44 GPM, Port Flange, Maximum Suspended Solids Diameter 1/8 Inch, Air Operated
ItemAir Operated Diaphragm Pump TypeNon Metallic Double Diaphragm Inlet/Outlet (In.)1 Flow (GPM)35 Max. Flow GPM40 Max. Flow (CFM)44 Max. Operating PSI120 Body MaterialPolypropylene Diaphragm MaterialPTFE Ball MaterialPTFE Check Seat MaterialPolypropylene Air Inlet (F)NPT (In.)1/4 Manifold ConnectionFlange Max. Dia. Solids (In.)1/8 Max. Temp. (F)150 Self-Priming Dry (Ft.)10 Self-Priming Wet (Ft.)15 Weight27.00
