MMPQ2222A quad npn transistor so-16 (2N2222) lot of 10

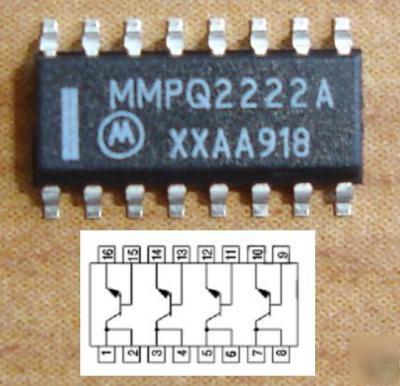

On Semiconductor/Motorola MMPQ2222A
Quad NPN General Purpose Transistor
Up for sale is a lot of 10 brand new MMPQ2222A Quad NPN General Purpose Transistors. There are four general purpose NPN transistors in this single SO-16 surface mount package. Please view the datasheet for complete details on this device. The datasheet can be found here: On Semiconductor Datasheet
Note that the datasheet shows this part as obsolete. On Semiconductor no longer manufactures it. However Fairchild Semiconductor still manufactures an equivelant part.
* Collector Emitter Voltage VCEO 40 Vdc
* Collector Base Voltage VCB 75 Vdc
* Emitter Base Voltage VEB 5.0 Vdc
* Collector Current Continuous IC 500 mAdc
* Four Transistors Equal Power
Again, you will receive 10 MMPQ2222A's for each lot you purchase.
Please contact me with questions.
