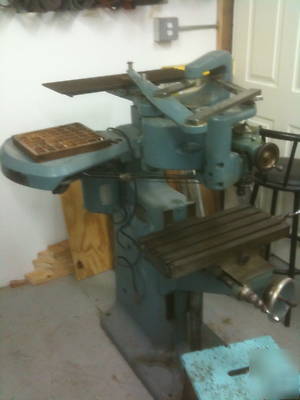

Gorton P1-2 pantograph excellent condition

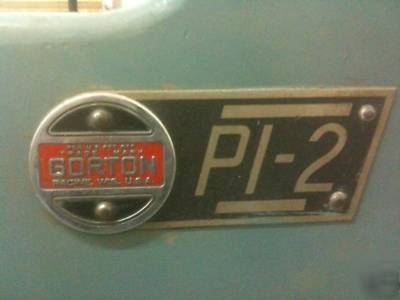

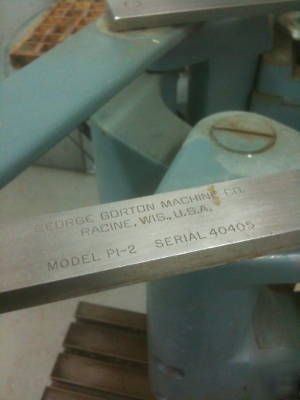

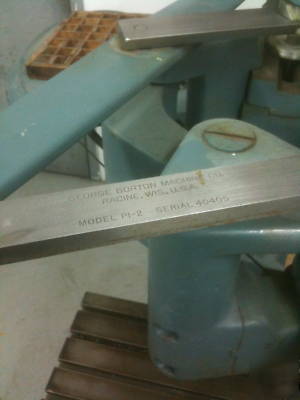

Gorton P1-2 Great Condition Model P1-2 heavy duty

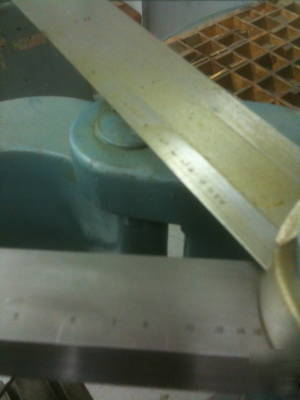

Ratios 1 to 1 up to 16 to 1(vernier arms)

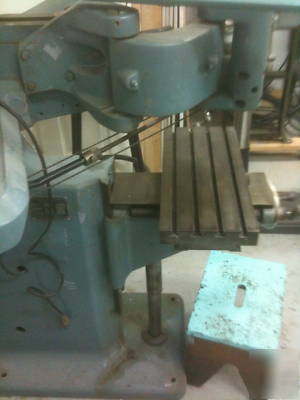

Longitudinal Feed of work table 10"
Cross feed of work table 11-1/8"
Max. distance spindle to table top 11-5/8"
(or 18" x 24" or 14" x 18" with (4) 7/16" T Slots)
Cutter capacity (heavy duty) up to 3/8" dia.
