Cuttermaster universal tool cutter endmill grinder

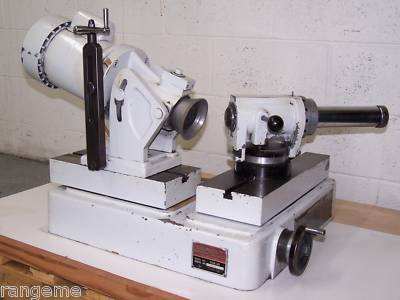

CUTTERMASTER UNIVERSAL TOOL CUTTER GRINDER ENDMILL / DRILL
Made in USA by Cuttermaster, Inc., of Paramount, California.
Cuttermaster Drill / Endmill Grinder Sharpener, Model # FCG-30, Serial # 0002.
Sharpen Drills & Endmills with 2, 3, 4 and MORE Flute Designation!
Features "Floating" Air Bearing Spindle / Collet Fixture.
Made from high-grade American castings; completely machined, ground.
360 degree swivel for tapered and chamfer grinding.
Accommodates Cutters with 1/16" to 3" Diameter Shanks.
Equipped with 3 3/4" Diameter Diamond Cup Grinder Wheel.
Work Head accommodates Collets with 5C Designation.
Motor Head and Work Head mounted on 1/2" T-Slotted Tables.
Work Head Table measures 5 5/8" x 16 1/4".
Motor Head Table measures 5 5/8" x 13".
Hardinge 3/32" diameter capacity 5C Collet included.
Shank Cutting Tool Capacity: 2" (50 mm) shank
O.D. Cutting Tool Capacity: 9.8" (248 mm)
Flute Length Cutting Tool Capacity: 10.5" (266 mm)
X-Axis Table Travel: 6" (152 mm)
Y-Axis Table: 3" Plus Motor Slide of 6" (152 mm)
X-Axis Working Space: 16.5" (419 mm) x 5.5" (139 mm)
Y-Axis Travel Working Space: 13" (330 mm) x 5.5" (139 mm)
Overall Dimensions are 24" x 27" x 21" tall.
