Modular pilot-op check valve 9.3GPM 3000PSI ports a&b

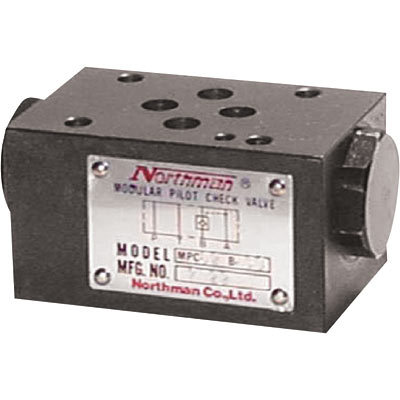

Modular Pilot-Op Check Valve 9.3GPM 3000PSI Ports A&B
Northman pilot-operated check valve is designed to block the flow of oil in a hydraulic system to hold the position of a cylinder when the directional control valve is shifted to the neutral center position. Flow is restored by a pilot pressure signal releasing the check valve when the directional control valve is extending or retracting the cylinder. Valve mounts as a modular unit between a D03 size directional control valve and the subplate. Contains 2 separate pilot-operated check valves one each on A cylinder port and B cylinder port. Requires longer than standard bolt kit to mount this flow control in valve stack. Max. Flow (GPM): 9.3, Max. PSI: 3,000
