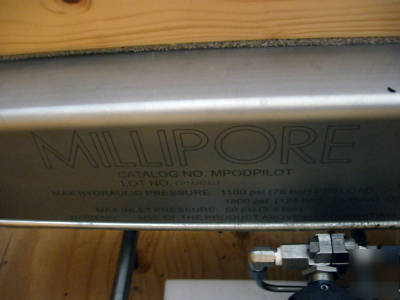

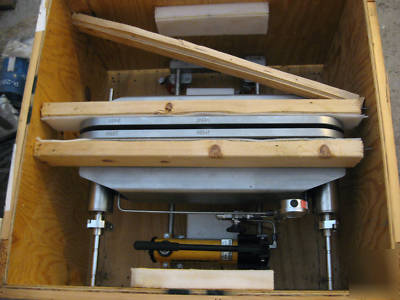

Millipore pilot scale holder
Millipore M Pod Pilot Filtration System*Used, Excellent Condition* Description: Pilot Scale Holder

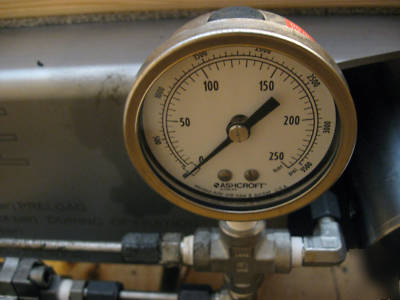

Connections, Gauge Port: 1-1/2 in. Sanitary Flange
Materials of Construction: 304 stainless steel
Connections, Inlet/Outlet: 1-1/2 in. Sanitary Flange
Configuration: For Pod configurations up to 2.2 m2
All Metal Surfaces in Contact with Process Fluids
Manifold Surface Finish, Internal
Electropolished, Ra <0.4 m (<15 micro-inches)
All Metal Surfaces Not in Contact with Process Fluids
304 stainless steel 2-piece clamp
Capable of supporting and sealing Pod filters up to 3.5 bar (50 psig) maximum operating pressure at 25 C. Inlet and outlet connection to the Pods and vents are via disposable adapters.
3.5 bar (50 psid) at 25 C; 1.0 bar (15 psid) at 80 C
Sealing materials and plastics in contact with the product meet USP <88> Biological Reactivity test for Class VI plastics and are Title 21 CFR 177.2600 and 177.1550 compliant.
