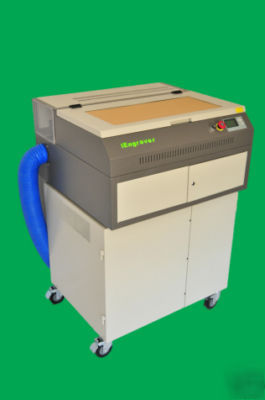

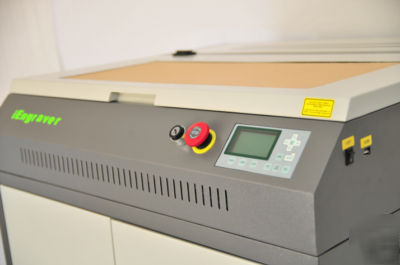

Laser engraver on sale - metal tube w/ air purifier
iEngraver is a personal laser engraving and cutting machine that can be used in office or at home for individuals who need to transfer any digital graphics to a wide variety materials in three dimensional. It is a perfect tool for scale modeling, advertisement, signs, gift, art, identification & reorganization, school project, cloth engraving, 3D printing and more.
iEngraver uses a high power laser beam to heat up the surface of material and subsequently vaporizes the material either on surface (engraving) or totally getting though(cutting). A computer system controls laser beam movement to print out high precision images.
iEngraver has build in high efficiency air filtering system to eliminate any hazardous odors and particles, which is created by vaporizing materials such as plastic and wood. As a result, it is safe to use inside rooms without additional exhaust system.
Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments,
paper, leather, rubber, ceramic, glass and other nonmetal materials
1. Engraving area: 400 x 300 mm
2. Whole machine size (including air filtering system): 680 (w) x 640 (d) x 1400 (h) mm

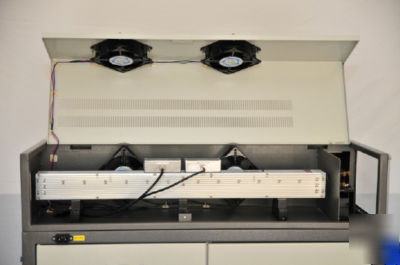

3. Laser type: Sealed CO2 RF metal tube, long life time (up to 7 years in normal use)
4. Laser power: 30W with 60W super pulse capability
5. Engraving speed: 0 - 50.000mm/min
6. Resetting positioning accuracy: 0.01mm
7. Power supply: AC 110 - 220V 10%, 50 - 60Hz
8. Gross power consumption: <1,000W
9. Operating temperature: 0 - 45 C
10. Operating humidity: 8 - 95%
11. Minimum shaping character: English 0.5 x 0.5mm
12. Graphic format supported: CorelDraw, AutoCAD, Photoshop and Windows based graphic sw. Format: BMP, HPGL, JPEG, PLT, DST, DXP, DXF, DWG, CDR, and AI
13. Driving system: stepper motor and linear rail system
14. Cooling mode: forced air cooling (metal tube) and overheat protection system
15. Controlling software: DSP control system with proprietary software
a. Pre-Filter: Large capacity pleated dust bag: 99% efficient @ 1.0 micron
b. HEPA Filter: 99.97% efficient @ 0.3 micron
c. Adsorbent Cell: Large capacity gas filter: 7 kg blended activated carbon and activated alumina. 100% recyclable environment safe cell
18. Operation noise level: < 55 dB (equivalent to busy street noise level)
19. Auxiliary equipment: Air assist (flame extinguisher), air pump
20. Additional features: auto focus, vacuum table, cutting table, auto adjustable table, indicator red beam, re-locatable origin, memory buffer, file compression
