Digital check tellerscan TS400ES TS400 check scanner =)
DIGITAL CHECK TELLERSCAN TS400ES TS400 CHECK SCANNER =)
DIGITAL CHECK TELLERSCAN TS400ES CHECK SCANNER...

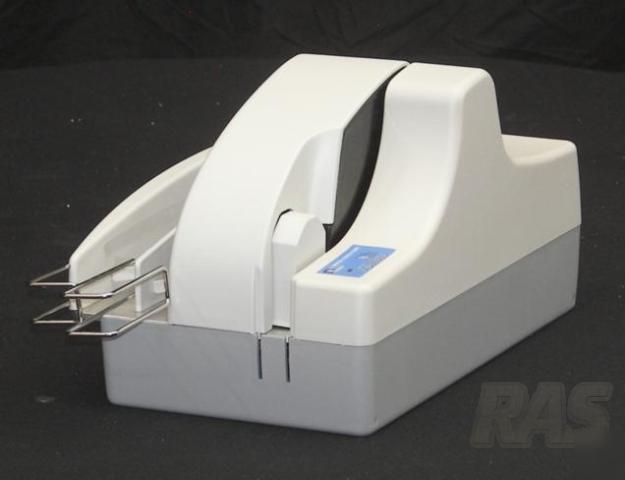

In EXCELLENT USED condition. There are minimal signs of use on the exterior. It comes as you see it in the pictures.
We have no power supply to test it with but will offer a guarantee against DOA.
ountertop Check Scanner For Branch, Remote and Distributed Capture Applications
Highest Speed Scanning (up to 90 checks per minute) 100 Item Jam Resistant Feeder Two Enhanced Output Pockets (sort selectable) Enhanced MICR Line Reading Highest Quality Images Optional Ink Jet Endorser Made in USA & Europe Windows 32 bit Common API's
Features & Specifications TellerScan TS400 Check Scanner Without Endorser
Document Height: 2.16 - 4.13 inches (55-105mm)
Document Length: 2.95" - 9.0" (75-230mm)
Document Weight: 16-32 lb. (60-120 grams per sq.meters)
FeederCapacity: Approximately 80-100 items
(depending on document thickness and condition)
Quantity 2 Standard Software Selectable
Approximately 80-100 item capacity
Concurrent two-sided duplex (front & rear)
Cameras: 2 x 840 cell, 105mm contact CCD
Infra-red based transmissive device-software adjustable.
Programmable double feed delay performs skip-over function.
Scanning Speeds & Image Resolution:
Black and White (bitonal) & Grayscale
200 x 100 dpi 39.37inches/sec (100 cm/sec)
200 x 200 dpi 19.69 inches/sec (50 cm/sec)
100 x 100 dpi 39.37inches/sec (100 cm/sec) - grayscale only
Throughput: Up to 90 - 6 inch (5.2 cm) documents per minute.
Depends upon scanning mode selected and power of host computer
SCSI-2. ID selectable at scanner
G IV bitonal or JPEG grayscale
Performed by software running on workstation
Image Transmission: Via SCSI port
MICR recognition firmware for E13B or CMC7 standards:
MICR codeline data transmitted via SCSI port
Software Tools & Support Services
API Toolkit 16 and 32 bit versions available
Windows '98, ME, NT, 2000 and XP
Tests complete functionality of the scanner
Automatic self-testing of electrical components when powering on the unit
EEPROM allows monitoring hours of operation and total check count.
Flash EEPROM allows easy upgrade of functionality
Power consumption: 75 watts (max.) Input voltage:
115 VAC (+/- 10%), 60hz - US domestic
230 VAC (+/- 10%), 50hz - international
Separate standard AC power supply
Designed for: Useful life of 20,000,000 checks
Duty cycle: 8,000-12,000 checks per day
Mean Time To Repair (MTTR): 30 minutes
Temperature (operating): 60 - 90 F (15 - 32 C)
Humidity (operating): 35%-85% (non-condensing)
Depth - 7.25 inches (18.5cm)
Length - 12.75 inches (32.5cm)
