Square d, sq d, nema size 2, reversing motor starter
IMAGINE!!!! - A NEMA Size 2, Motor Starter, 3P, 480V, 45A!!!!
Click any picture to supersize.
Then click again to make it Explode.

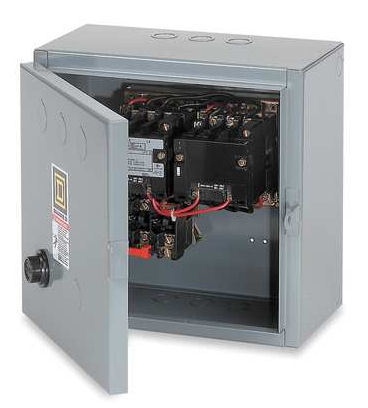

Pre-Owned Motor Starter, NEMA, Reversing, NEMA Size 2, NEMA Enclosure Type 1, Coil Volts 208/240, 50/60 Hz, Number of Poles 3, 45 Amps AC, 10 HP @ 3 Phase - 208V, 15 HP @ 3 Phase - 230V, 25 HP @ 3 Phase - 460V, 25 HP @ 3 Phase - 575V.
Size 25.60 Height (In), Width 11.90 In, Depth 10.90 In, Aux Contact Configuration 1 NO/1 NC, Standards UL/ CSA, Includes Melting Alloy Thermal Overload Relay and Instantaneous Magnetic Trip Mechanism
The steel Dust Resistant NEMA 1 enclosure is in excellent shape, and has 5 KO s already installed for your convenience. There are two holes, one in the top, and one on the left side. One hole will be found on the bottom, and two 1 holes, one on the right side and one on the bottom of the box.
One other thing I would like to point out is that the magnetic coils are 220/240V, which really means 208/240V. If you need to use this with a 480V circuit, or a 120V control circuit, a small control transformer may be in order to avoid purchasing two new coils of the proper voltage. Of course if your application is 208V 3 this starter is Ideal for you.
Another point is that the overload heaters that come with this Reversing Motor Starter, are three B-70 s which will protect a motor with an FLA rating of 34.7-38.6 Ampres, which may or may not be the size you need.
This starter is in great shape by the way, the contacts have been inspected and there is very little wear and pitting on them. It must have seen very limited use in its past life. Naturally it s mechanically and electrically interlocked, and has a N.O/N.C auxiliary contact for control purposes.
I have to be very careful that I don t talk myself into keeping items I m selling for that very same reason. Unfortunately age has me pushing 72 pretty hard, and it s time to commit to retiring. Actually, if I had any sense I would have done that 20 years ago.
