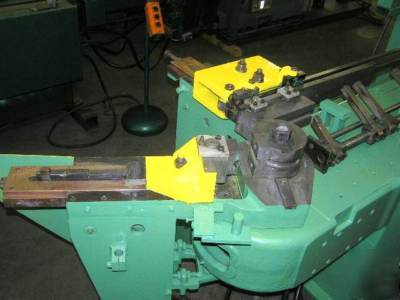

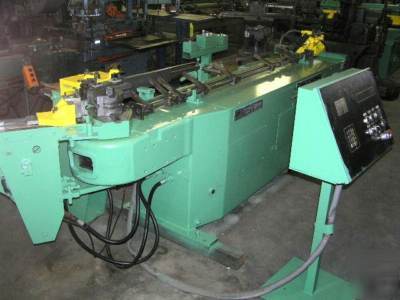

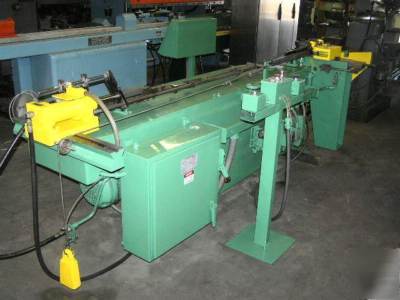

Pines #2 cnc hydraulic tube bender
PINES #2 CNC HYDRAULIC TUBE BENDER
Round Tubing..............................3" x 0.109"
Steel Pipe................................2", Sch 80
Square Tubing.............................2 1/2" x 0.083"
Maximum Radius Standard...................12"
Maximum Bend Angle........................180 deg
Bend Angle Accuracy.......................+/- 1/4 deg
Bending Arm Speed.........................6 rpm
Length of Arm.............................22.5"
Bed Length................................137.75"
Centerline Height.........................2"
Undernose Clearance.......................15.25"
Working Height............................30.75"
Reservoir.................................55 gal
Motor.....................................15 hp
Dimensions................................18"x65"x50" 7,500lbs

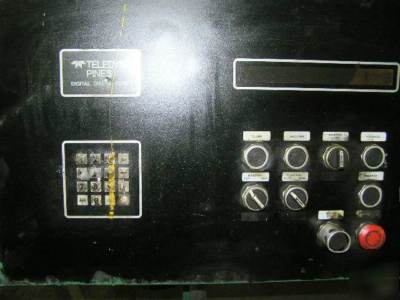

Teledyne Pines Dial-A-Bend Control
