Mimik lathe tracer attachment fits leblond,clausing
OFFERED FOR SALE IS A "MIMIK" BRAND HYDRAULIC LATHE TRACER ATTACHMENT.

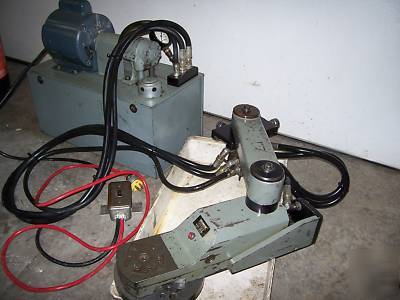

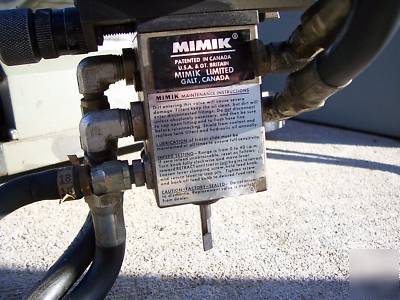

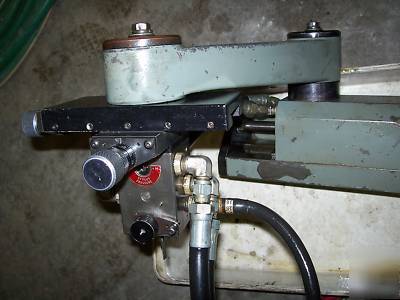

THIS WAS USED ON A 15" LATHE. THIS UNIT FEATURES A STYLUS WITH ADJUSTABLE PRESSURE, AS WELL AS A SMALL MANUAL AXIS SLIDE ON THE STYLUS BASE. WE USED THE TRACER ON A CLAUSING LATHE IN CONJUNCTION WITH AN ALORIS TOOLPOST (NOT INCLUDED). IT WILL BE NECESSARY TO FABRICATE A TEMPLATE HOLDER TO HOLD YOUR SPECIFIC TEMPLATES ALONG THE BEDWAY.
THE ROUND MOUNTING BASE IS 7" DIA. AND THE CENTER TO CENTER DISTANCE OF THE ARM, AND THE ARM TO TOOL POST ARE BOTH 10". STROKE OF THE TRACER HYDRAULICS IS APPROX. 3 3/4". WE HAVE RUN AND CYCLED THE UNIT RECENTLY (HYDRAULIC PRESSURE IS 275 PSI). APPEARS TO BE IN GOOD WORKING CONDITION, ONE SMALL HYDRAULIC HOSE HAS A CRACK IN THE OUTER COVERING, BUT DOES NOT LEAK. THE REMAINING FOUR HYDRAULIC HOSES ARE IN EXCELLENT CONDITION. PRESSURE GAGE WORKS PROPERLY BUT IS MISSING THE GLASS FACE. WE HAVE ATTEMPTED TO LIST THIS UNIT AS ACCURATELY AND HONESTLY AS POSSIBLE. PLEASE EMAIL FOR ANY ADDITIONAL INFO YOU MIGHT REQUIRE.
REFER TO http:// for more information including videos of the tracers in use.....very interesting!!
THIS UNIT WILL GIVE YOU THE CAPABILITY OF PRODUCING PARTS WITH COMPLEX RADII, CONTOURS, ANGLES, ETC. ON YOUR MACHINE LATHE THAT WOULD OTHERWISE BE IMPOSSIBLE WITHOUT A CNC LATHE!
