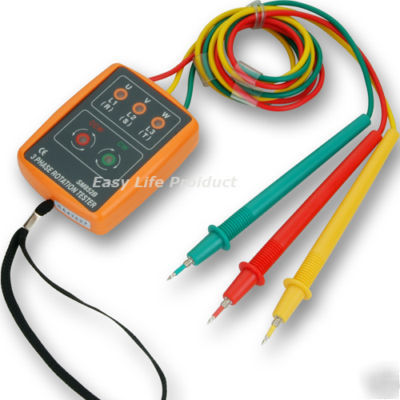

3 phase sequence rotation indicator tester checker ap
This is a very useful instrument for checking the phase sequence with indication by LED's and Buzzer at the same time.
* Check the presence of open phase and phase sequence condition
* Operation Voltage : 60V - 600V AC, three phase
* Limit Support Voltage : 2000 V/min
* Operating Frequency Range : 20 Hz - 400 Hz
* Limit Time for Continuous Use:
* 60 minutes maximum at 60V AC
* 4 minutes maximum at 600V AC
* Test Leads : Double insulation
* Length of test leads : approx. 1 meter long
* Item dimension : approx. 64 (L) x 85 (W) x 23 (D) mm (2.5 x 3.2 x 0.9" inch)
* Item weight : approx. 200g
* 1 x Main unit with Test leads and alligator clips
* US $7.90 per unit to worldwide
