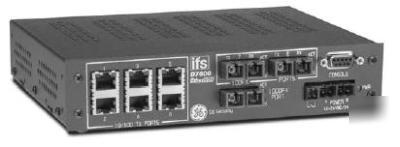

Ifs D7600-ss-s hardened managed switch 9 port
IFS NINE PORT HARDENED ETHERNET MANAGED SWITCH 10/100TX, 100FX SM 1000FX SMItem# D7600-SS-S Six 10/100 TX plus two 100FX SC SM ports AND ONE 1000FX UPLINK PORT ALL UNITS WERE USED IN DEMO'S IN EXCELLENT CONDITION
The IFS EtherNav D7600 series of Managed Ethernet Switches provide robust transmission of 10/100 BASE-T Ethernet data. Unlike most Ethernet switches, these environmentally hardened units are designed for direct deployment in difficult out-of-plant or roadside operating environments, and are available for use with either conventional CAT-5e copper or optical transmission media. 6 electrical and 3 optical ports are available for easily implementing point-to-point, linear add-drop/ drop-and-repeat, star, or true self-healing ring and mesh network system architectures. The electrical ports support the 10/100 Mbps (10/100 BASE-T) Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/ MDIX features are provided for simplicity and ease of installation. A 1000 BASE-T or 1000 BASE-FX port is available for optically linking D7600 series switches when additional IP communications ports are required, allowing simple and cost-effective future expansion of the network if required. Available for use with single mode optical fiber, these network managed (through SNMP), Layer 2 switches are optically (100 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet device. Plug and- play design ensures ease of installation, and no electrical or optical adjustments are ever required. LED indicators are provided for rapidly ascertaining the operating status of the managed switch and network, and these units are available in stand-alone/shelf-mount, wall-mount, rack-mount or DIN-rail mounting configurations.
Features: Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations. Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and CALTRANS Traffic Signal Control Equipment Specifications. Extended Ambient Operating Temperature Range, -40 C to +74 C NTCIP Compatible 10/100 BASE-T and 100/1000 BASE-FX Compatible Available in Stand-Alone/Shelf-Mount. Wall-Mount/Rack-Mount and DIN Rail Mounting Kits available Redundant Power Supply Capability Reduces Possibility of Single- Point-of-Failure for Highest Possible Reliability Fully Configurable Through Web-Based or SNMP Network Management Fully supports IGMP and IP Multicasting and Filtering Port Based VLAN (IEEE 802.1Q) Rapid Spanning Tree Protocol (IEEE 802.1W) Designed and Manufactured in the USA
