10" x 15.7" studer S30(dr) precision universal grinder

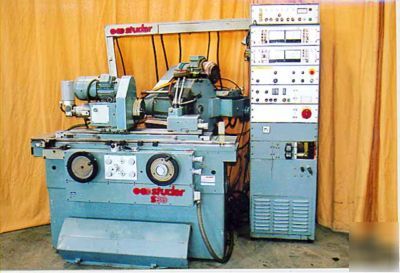

10" X 15.7" STUDER MODEL S30(DR) PRECISION UNIVERSAL CYLINDRICAL GRINDER
Motor Driven With 4 HP, 3 Phase, 60 Cycle, 480 Volt Spindle Drive. MD Variable Speed Workhead. MD Hydraulics. Coolant System. Complete Electrical Controls.
Straight and Angle Head Grinding. Right Hand Wheel Mount. Rear Mounted Automatic Wheel Dressing for Straight or Profiled Wheels. Automatic Cycling. Plunge And Pick Feeds. Sparkout. Swivel Workhead. Swivel Wheelhead. Lever Operated Tailstock With Fine Adjustment. Micrometer Inch Reading Hand Infeed With Fine Infeed Adjustment By Knob. Swivel Table With Micrometer Indicator. Coolant Pump And Tank.
Maximum Distance between Centers 15.75"
Grinding Wheel Size, Maximum 17.72" x 3.15" x 8" Bore
Table Speeds, Variable .17-18 FPM
Workhead Speeds, Variable 30 - 675 RPM
Plunge Feed .000008 - .004 IPS
Intermittent Feed .00004 - .002"
Maximum Weight between Centers 176 lbs
Wheelhead Rapid Approach 1.58"
Maximum Plunge Depth (in diameter) .07"
Auto Infeed per Impulse .0001"
