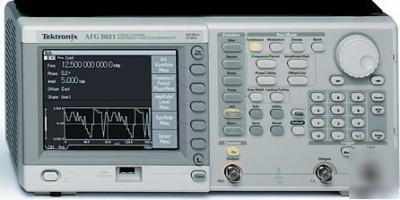

New tektronix AFG3021 arbitrary function gen. 25MHZ
FOR SALE : BRAND NEW TEKTRONIX AFG3021
Unmatched performance, versatility,
intuitive operation and affordability make
the AFG3000 Series of Function, Arbitrary
Waveform and Pulse Generators the
most useful instruments in the industry.
Users can choose from 12 different
standard waveforms. Arbitrary waveforms
can be generated up to 128 K in length at
high sampling rates. On pulse waveforms,
leading and trailing edge time can be set
independently. External signals can be
connected and added to the output signal.
Dual channel models can generate two
identical or completely different signals. All
instruments feature a highly stable time
base with only ?1 ppm drift per year.
5.6" Display for Full Confidence
in Settings and Waveform Shape
USB, GPIB and LAN Tektronix AFG3021 Arbitrary Function Generator Description: The Tektronix AFG3021 is a 1 Channel Arbitrary Function Generator. Product Specs: Channels: 1 Sine: 25MHz Square/pulse/arb: 12.5MHz Other Waveforms: 250kHz Arb sample rate: 250 MS/s Waveform memory: 4 x 64K Amplitude: 10Vpp Remote interface: USB Other Info: Short cut keys to commonly used parameters. Large display showing all relevent settings and detailed graphical waveshape at a single glance. Same look and feel as TDS1000/2000/3000B value oscilloscopes. Highest frequency and arb sample rate in its class. Pulse wave with independently variable rise and fall times. Vertical arbitrary waveform resolution of 14 bits. Twice the waveform memory as market leading products. Frequency stability of + or - 1 ppm per year. Seven user interface languages selectable. USB memory connectivity on front-panel for loading and saving waveforms. ArbExpress Software Included for Creating Waveforms with Ease: With this PC software waveforms can be seamlessly imported from any Tektronix oscilloscope, or defined by standard functions, equation editor, and waveform math.
* 5.6" Display for Full Confidence in Settings and Waveform Shape
* Multi-language and Intuitive Operation Saves Set-up Time
* Pulse Waveform with Variable Edge Times
* USB Connector on Front Panel for Waveform Storage on Memory Device
