Long range radar transceiver antenna 24GHZ k-band ghz

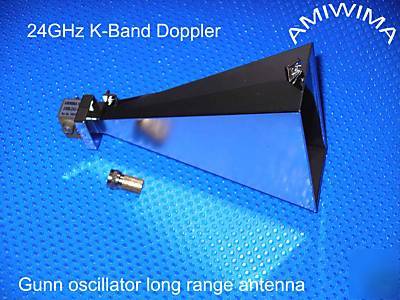

You get a new microwave 24 GHz K-band radar doppler gunn transceiver module with WR-42 waveguide flange and high gain microwave horn antenna. The rf module has a mechanically frequency adjustable gunn oscillator with one mixer diode. The small transceiver can be used as rf part for a long range doppler radar speed detector. It can be used as RF signal source and as transmitter and receiver in the K-band for FM applications for larger distances. As test oscillator you can test doppler sensors and measure the sensitivity of microwave receivers or K-band radar detectors.
K-Band Antenna: Horn Antenna, light weight metallized plastic
Antenna Connector: WR-42 flange for Gunn Oscillator
Dimensions Antenna: 5.3 x 3.7 x 1.9 in or 13,5 x 9,3 x 4,8 cm
K-Band Module: Gunn Oscillator Cavity
Power requirements: 5VDC @ 100mA max.
Weight : about 70 grams (doppler + antenna)
Application design support @ extra costs.
