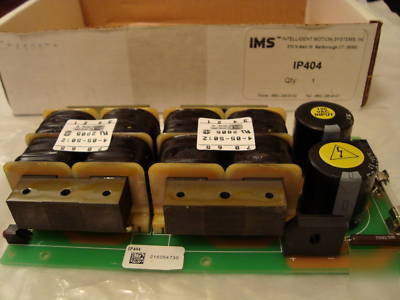

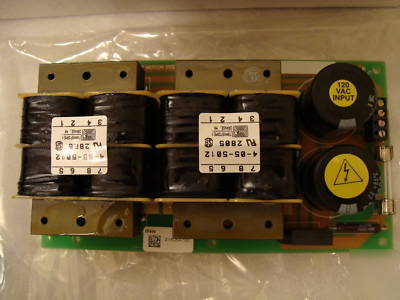

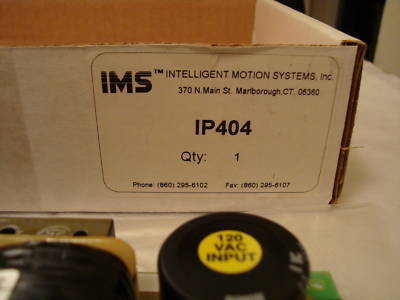

Ims IP404 dc power supply (motor, stepper, nema)
Used sparingly on the test bench. Condition is very good.
IMS unregulated DC power supplies deliver optimum power for top driver performance. The IP402, IP404, IP406 and IP804 can be rack or panel
mounted. The IP406 provides both cost and space savings in multiple 40/48 VDC driver applications. For high power, multiple driver applications using 80 volt drivers, we offer the IP806. This power supply s rugged open framed L bracket design is easily panel mounted.
Input Voltage .......................120 VAC (Option -240)
Input Frequency ...................50/60 Hz
No Load Output Voltage* ...43 VDC @ 0 Amps
Continuous Output Rating* ..32 VDC @ 2 Amps
Peak Output Rating* ............26 VDC @ 4 Amps
http:// /downloads/datasheets/ip_sppls.pdf
