Fluke 2625A hydra data logger w/ universal input module
Fluke 2625A Hydra Data Logger w/ Universal Input Module
The Fluke Model 2625A Hydra Data Logger features non-volatile memory that stores more than 2000 scans, for stand-alone applications. The 2625A is easy to set up and reconfigure from the front panel. In addition, this unit has bi-directional communication via RS-232C, which enables control from a host computer. The RS-232C interface also supports stand-alone use with a serial printer.

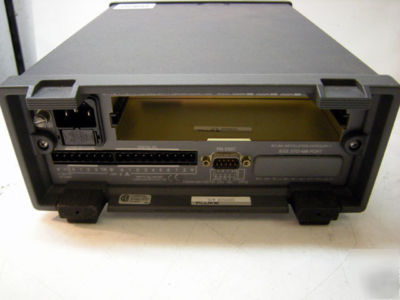

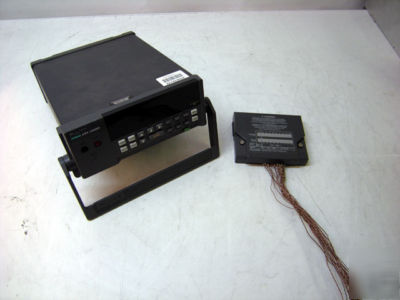

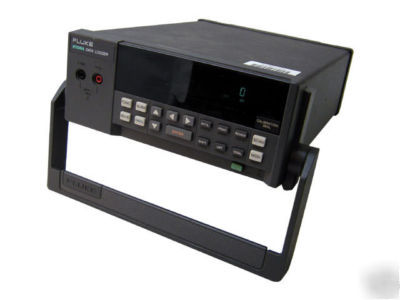

This is a used, Fluke 2625A Hydra Data Logger w/ Universal Input Module
* Channel Scanning: can be continuous scanning, scanning at an interval time, single scans, or triggered (internal or external) scans
* Channel Monitoring: make measurements on a single channel and view these measurements on the display
* Channel Scanning and Monitoring: view measurements made for the monitor channel while scanning of all active channels continues
* Multi-Function Display: Left (numeric) display shows measurement readings; also used when setting numeric parameters; Right (alphanumeric) display used for numeric entries, channel number selection and display, status information, and operator prompts
* Measurement Input Function and Range:
- Volts dc (Vdc), dc voltage ranges 300 mV, 3 V, 30 V, 300 V
- Volts ac (Vac), ac voltage ranges 300 mV, 3 V, 30 V, 300 V
- Frequency (Hz), 15 Hz to 1 MHz
- Resistance (Ohm), resistance ranges: 300 Ohm, 3 k Ohm, 30 k Ohm, 300 k Ohm, 3 M Ohm, 10 M Ohm
* Temperature Measurement: Thermocouple types J, K, E, T, N, R, S, and B, and Hoskins Engineering Co. type C are supported. Also, DIN/IEC 751 Platinum RTDs are supported
* Totalize Events on the Totalizing Input
* Alarm Limits and Digital Output Alarm Indication
* 4-Terminal Resistance Measurements (Channels 1 through 10 only)

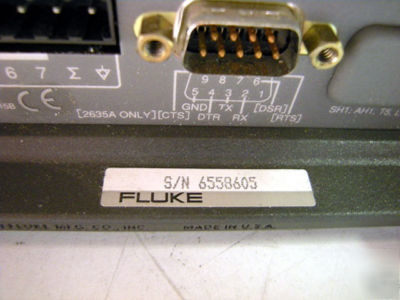

* RS-232 Computer Interface Operation
* Nonvolatile Memory: Storage of minimum, maximum, and most recent measurements for all scanned channels. Storage of Computer Interface setup, channel configurations, and calibration values. Storage of measurement data: storage for 2047 scans of up to 21 channels, representing up to 42,987 readings
* 90 to 264 Vac, 50 or 60 Hz operation; or 9.0 to 16 Vdc
* Weight: 7 lb; Size: 93 mm (3.67 in)H x 216 mm (8.5 in)W x 312 mm (12.3 in)D
