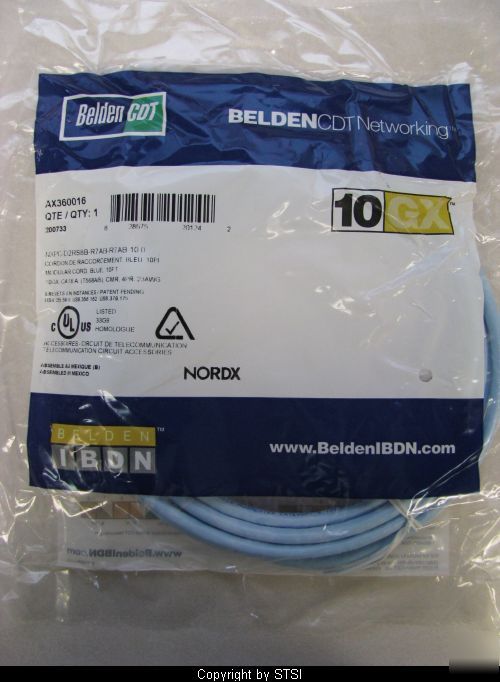

Belden 10 Ft Cat6 Ethernet Patch Cable, 4pr 23awg
The Belden 10GX Modular Cords are 4-pair 23 AWG UTP modular cords designed to be used within the Belden IBDN System 10GX. To allow for data-rates of 10 Gb/s, the signal needs to be transmitted at frequencies up to a minimum of 500 MHz, as compared with Category 6 transmissions which run up to 200 MHz. To achieve communication at these high frequencies over UTP copper requires significant changes in the way the channel components are designed.
At these high frequencies, all components of a 10G channel begin to emit electromagnetic fields, which negatively impact the channels that are closest in physical proximity. This interaction between one channel and its neighboring channels is called Alien Near End Cross Talk (ANEXT). Overcoming this is one of the most difficult requirements of Augmented Cat 6 standard.
The second critical challenge to developing 10G modular cords is to control the electrical performance on all the other parameters up to a minimum of 500 MHz.
In order to achieve true 10G channel performance, Belden CDT Networking has designed the 10GX Modular Cord based on a patent-pending design: the management design allows for very good control of the internal plug NEXT. This allows the modular cord to deliver channel performance up to 625 MHz. The patch cable design offers very good Alien crosstalk performance, while maintaining the important mechanical characteristics such as flexibility.
The 10GX Modular Cords' design, with a very small footprint, makes them fully compatible with the highest density hubs that utilize RJ45 jack connections.
The 10GX Modular Cords are available in ten pantone colors that match the colors per the TIA/EIA-606 standard. The 10GX Modular Cords product line encompasses CMR modular cords, as well as open-ended cords.
The unmatched performance exceeds all parameters specified in the proposed Augmented Category 6 standard. All performance characteristics have been set to guarantee transmission performance up to 625 MHz. The 10GX Modular Cord is designed to be used with the Belden IBDN System 10GX.
