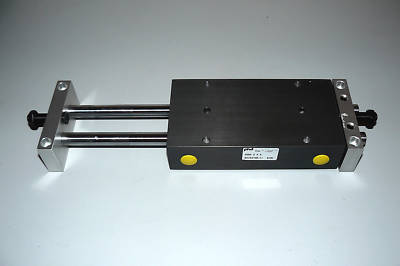

New phd MSO42X4 pneumatic linear air slide
* Compact lightweight design uses two cylinders built into the moving slide saddle to produce a high thrust-to-weight ratio.
* Chrome-plated high strength shafts minimize deflection while providing long life for the slide mechanism.
* Fluoropolymer composite bearings require no lubrication for low maintenance.
* The hardcoated aluminum alloy saddle contains tapped holes for mounting fixturing or for attaching PHD Transition Plates to mount other PHD components.
* Travels are available up to 6" with travel adjustments standard in both directions.
* Four sizes available with shaft sizes from 1/4" to 3/4".
* Air/Oil tandem models are available for precise control of the saddle velocity.
* Optional porting through the guide shafts allows the saddle to move without flexing the incoming air-lines.
* Magnetic pistons available for use with PHD's Reed or Hall Effect Proximity Switches.
