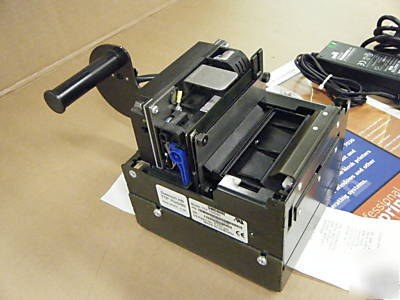

Swecoin Zebra TTP7030-80 Thermal Receipt Printer

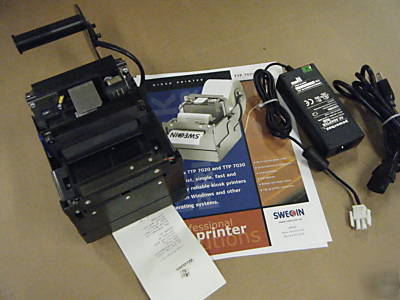

Available for sale is a Swecoin TTP-7030-80 Thermal Receipt Printer configured for 80mm (3.00 ) receipt paper. The TTP-7030-80 is a roll fed direct thermal receipt printer designed for use in ATMs, retail applications, self-service kiosks and industrial applications. It supports a 150mm (6.00 ) diameter paper roll and has end of roll sensor, retraction and presenter to eliminate user induced jamming. Includes 24VDC switching power supply and power cord. Drivers library is available via manufacturers website @
TTP 7020 and TTP 7030 thermal kiosk printers for 80 mm and 112 mm paper width are robust, simple, fast and extremely reliable. The TTP 7020 model is bi-directional parallel and the TTP 7030 USB interface. Serial adapters are available for both models. Both are developed for unattended use in unfriendly environments such as heat, cold and vibration. TTP 7020/7030 is developed from the TTP7000, offering more features at lower price.
With an integrated control board the printers are Plug and Play compatible for effortless installation in any system (Windows, Linux, Mac etc). You can also address the printers directly from your OS software.
variable angles in order to fit various applications. They offer a multitude of functions that will add great value to any project.
Printer control: Drivers for: Windows 95/98/ME, NT 4/2000/XP, Linux, and Macintosh. Direct address through ESC sequences
Print method: Direct thermal line printing
Resolution: 8 dots/mm (203 dpi)
Printing feed pitch: 1/8 mm (203 lpi)
Printing width: 72 mm (576 dots) for model /80, 104 mm (832 dots) for model /112
Interface: TTP 7020 Parallel, IEEE1284 bi-directional, TTP 7030 USB, bi-directional
All models Serial RS232 with optional adapter
Paper width: 80 or 112 mm depending on model
Paper thickness: 0.054 0.1 mm ( 57-100 g/m2)
Paper path: Straight paper path and flip-up printer mechanism
Paper loading: Automatic paper loading. Automatic on-line after successful paper load.
Separation: Full cut trough guillotine cutter
Presenter principle: Looping presenter that holds printout until fully printed, then cuts and presents the printout.
Eject length after cut: Precise eject of 50 mm 3 mm. Easily extended with parameter setting.
printouts: Eject when new printout is initiated, or eject when timeout elapses. Timeout can be set in 10 s steps.
Retract and Retain: Optional retract and retain unit retracts uncollected printouts and throws them into a waste basket inside the kiosk
Sensors: Optical sensors Out of paper / black mark, printout left in presenter, and pull detector. Optional retract, paper low,
and weekend paper low sensors.
Switch sensors Print head lifted, and cutter not in home position.
Optional shutter The optional shutter unit gives a good protection against vandalism.
Paper roll holders Paper roll holders for different paper roll sizes and placing behind or underneath the printer are available for these printers.
Typical throughput: 1.5 s/printout (Length 75 mm. Print, cut and present)
Dimensions (WxHxD): Model /80 136x137x150 mm without roll holder
Model /112 168x137x150 mm without roll holder
Power requirements: Voltage Single, 24Vdc 10%.
Current, 80 mm version Idle 150 mA, average 2.5A, peak 8.5 A
Current, 112 mm version Idle 150 mA, average 3.5A, peak 11 A
Environmental: Operating temperature 5 to 40 C
Operating Humidity 35 to 75% relative humidity, non-condensing
Life expectancy: Print head Aberration: >50 km paper. Pulse lines: >100 million
MTBF, Cutter 500 000 cuts. MTBF, control board 40 000 hours
MPBF 250 000 printouts (typical)
Print orientation: Portrait and Landscape
Fonts: Up to 8 fonts of 256 characters. Fixed, or proportional spacing
Font attributes: Bold, Underline, Italics, Reversed text, independent width & height scaling x1 to x16 of original size.
Graphics: Logotypes, BMP bitmaps, ruler lines
Bar Codes: EAN8, EAN13, UPC, Code 2-of-5 interleaved, ISBN, and Code39
