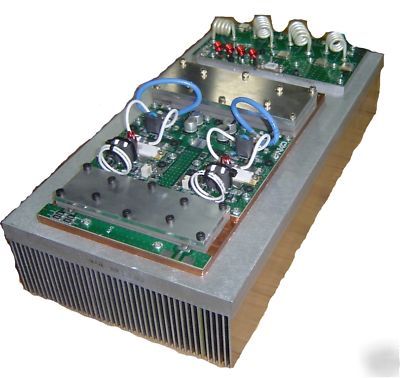

Pcs 1200 watt fm broadcast rf amplifier module
PCS ELEC 1200 WATT FM AMPLIFIER MODULE
JANUARY SPECIAL 1200 WATT FM AMPLIFIER MODULE
* Custom high performance bonded fin heatsink.
* 90 degree teflon hybrid combiners.
* Pout 1200W Minimum with a 4 watt input.
* Heatsink size: 6.96 inch wide x 2.75 in high x 13.5 inches long.
* Harmonic absorbing low pass filter with silver plated coils included.
* Power requirements 35 Amps max @ 43 - 50 volts. (2 SE1000 48V power supplies will run this module)
* Bias disable pads facilitate integration into amplifier systems that employ automatic VSWR protection.
* This product requires a minimum of 200 CFM forced air cooling.
Summary: A truly professional FM broadcast wide-band no tune RF Amplifier Module, featuring advanced technology, can be operated across the entire FM Band II 88 - 108MHz, requires at least 1 x high velocity fan capable of producing a minimum of 200 cfm, we can supply the correct fan please ask after checkout, requires minimum 35 amp 48v DC power supply to obtain full output power, we recommend a couple of our SE-1000-48 power supplies these can be purchased direct from our web site.
