South bend lathe clamp,9"&10K,dial indicator not incl.

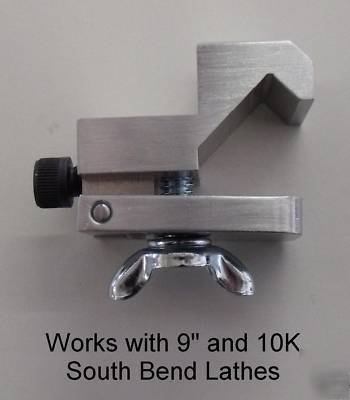

Z-axis dial indicator clamp for South Bend 9" and 10K (10") lathes.
Gauge clamp holds a lug back dial gauge (not included). Allows for precision indication of the carriage location (Z axis) on South Bend Lathes.

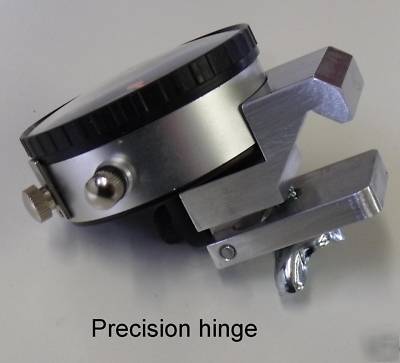

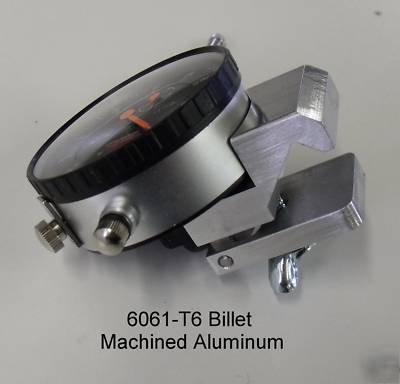

Included: Billet machined gage clamp, polished 6061-T6 aluminum, precision hinge, and wing screw

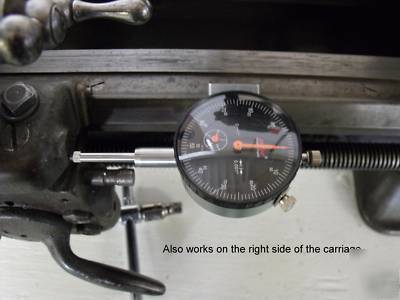

Works on either the left or right side of the carriage.

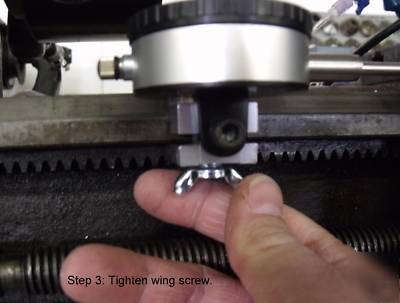

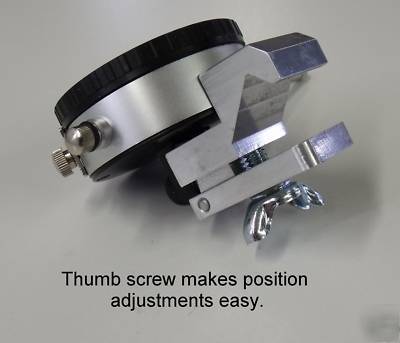

Easily repositioned with wing screw (no need to reach for an Allen wrench).
Polished aluminum will not mar ways.
Recommended dial gauge is ENCO# 605-4080
The clamp will also work with some other lug-back style dial gauges.

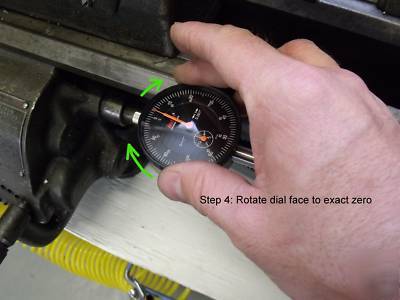

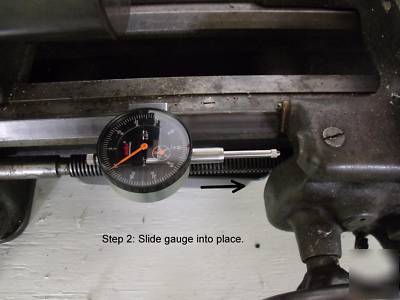

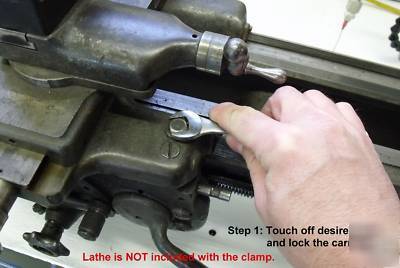

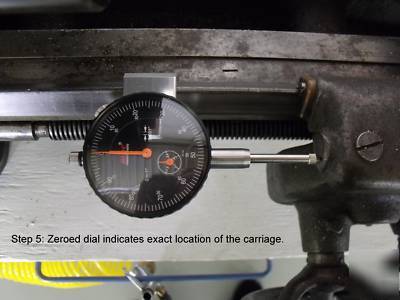

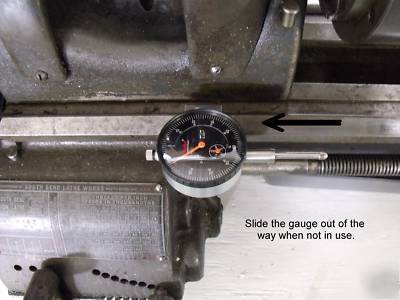

Photos show zeroing procedure.
This same item is also available with the dial gauge included:
Indiana Residents Must Pay 7% Sales Tax
