Ski 2022 ekoline ultrasonoscope ultrasound ndt imager

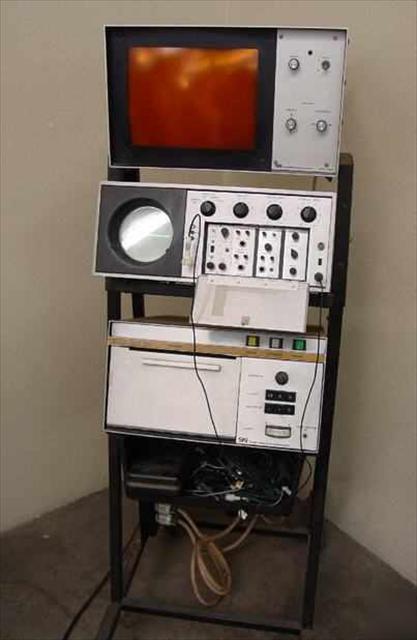

SKI 2022 Ekoline Ultrasonoscope Ultrasound NDT Imager
SKI 2022 Ekoline Ultrasonoscope Ultrasound imager. The monitor and printer probably need a scanning probe to show something. The ultrasound machine itself worked very well.
* It was tried on a shorter bottle with water, a taller bottle with water and a 324 mm long piece of Aluminum sheet metal.
* In the shorter bottle a second echo (surface - bottom again) is visible.
* In the Aluminum plate, two such reflections are easily visible.
* See the pictures of this, in that order!
* We even got a clear reflex from the from panel in air, at some 3 inches distance!
