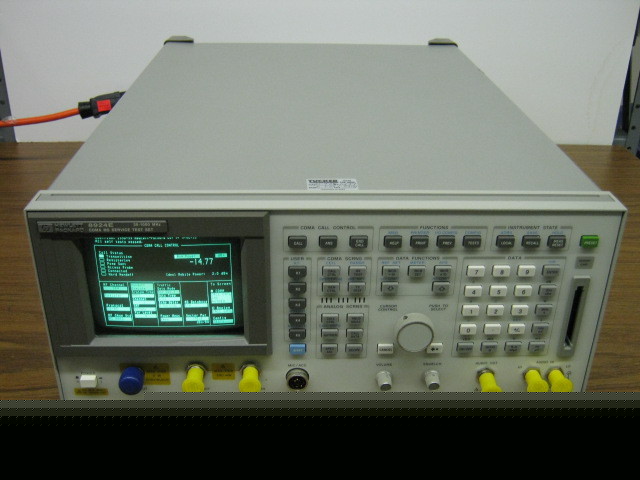

Hp agilent 8924E/102 cdma 30MHZ-1GHZ service ts refurb
HP Agilent 8924E/102 CDMA 30MHz-1GHz Service TS Refurb
The 8924E CDMA Mobile Station Service Test Set provides the key set of measurements to verify the performance of dual-mode CDMA mobile phones operating from 500 to 1000MHz. The unit's full AMPS, NAMPS, EAMPS, TACS, NTACS, ETACS and JTACS test capability saves you space, cost, and training expenses by allowing you to make both analog and CDMA digital measurements with the same instrument.
* Test Set Frequency Range: 30 MHz to 1000 MHz
* Frequency: 30 MHz to 1000 MHz
* Output: 127dBm to 10.5dBm into 50 Ohms
* AF Generator: 300 Hz to 10KHz
* Frequency range 30 MHz to 1000Mhz
* Input level: 10 dBm to +35 dBm (0.1mW to 3W)
* FM Deviation: 20Hz to 75 KHz
* Option 102 = Add Spectrum Analyzer with Tracking Generator
* Tracking Generator: 30 MHz to 1000 MHz.
* Output Level same as Signal generator.
