Franklin 20SDQP-2.0 hp constant pressure quickpak

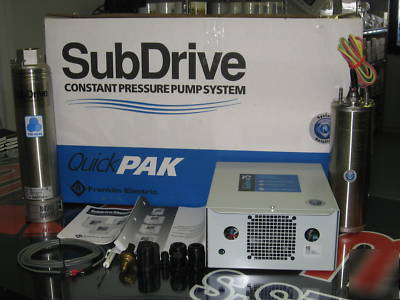

NEW FRANKLIN SUBDRIVE CONSTANT PRESSURE QUICKPAK. 20SDQP-2.0HP.
SUBDRIVE 100 CONTROLLER W/NEMA 1 ENCLOSURE
STAINLESS STEEL 20 GPM PUMP END
OPERATING/INSTALLATION/TROUBLE SHOOTING MANUAL
THE INPUT POWER ON THE SUBDRIVE QUICKPAK SYSTEMS IS STANADRD 230V SINGLE PHASE.
THIS SYSTEM IS DESIGNED TO INCREASE AND DECREASE THE RPMS ON THE MOTOR TO MAINTAIN A CONSTANT PRESSURE FROM YOUR WATER WELL TO CREATE A CITY LIKE WATER PRESSURE WITHOUT THE VARIATIONS.
THE 3 PHASE MOTOR IS MORE EFFICIENT TO OPERATE THAN A STANDARD PUMP SYSTEM.
THE SUBDRIVE CONTROLLER OFFERS A VARIETY OF PROTECTION INCLUDING: OVERLOAD PROTECTION, UNDERLOAD PROTECTION, HIGH VOLTAGE, LOW VOLTAGE, DRY WELL & LOCKED SHAFT.
THIS SYSTEM REQUIRES A 4 GAL PRESSURE TANK THAT IS NOT INCLUDED IN THIS PACKAGE.
