> Firetrol FTA1900 series fire pump controller, 75HP@480V

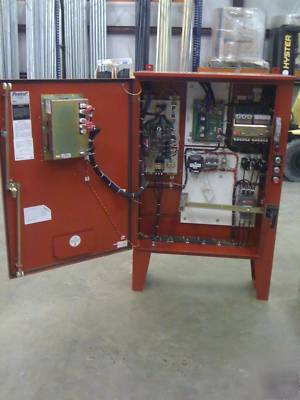

Firetrol FTA1900 series fire pump controller, 75HP@480V
Firetrol FTA1900 Solid State Starting Fire Pump Controllers feature soft start, soft stop and system sensing capabilities that not only provide for reduced voltage starting, but also offer an improved level of hydromechanical performance. The controller monitors, displays and records fire pump system information.
When called to run, the motor will accelerate along a ramp beginning at forty percent of normal starting current with fifteen percent of full voltage torque. When stopping, the motor will ramp down to a preset level and allow for a restart, limiting stress in the piping system. If no additional starting causes are present, the motor will continue to ramp down to a full stop. This controller helps to reduce water hammer in the system.
Firetrol fire pump controllers are listed by Underwriters Laboratories, Inc., in accordance with UL218, Standard for Fire Pump Controllers, CSA, Standard for Industrial Control Equipment, and approved by Factory Mutual. They are built to meet or exceed the requirements of the approving authorities as well as NEMA and the latest editions of NFPA 20, Installation of Centrifugal Fire Pumps, and NFPA 70, National Electrical Code.
Features Included standard with each controller:
* Main disconnect switch sized for connected motor horsepower and voltage
* Emergency Manual Run Mechanism to mechanically close motor contactor contacts in an emergency condition
* Built-in Start and Stop pushbuttons to bypass automatic start circuits

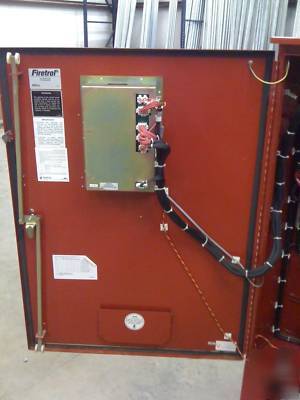

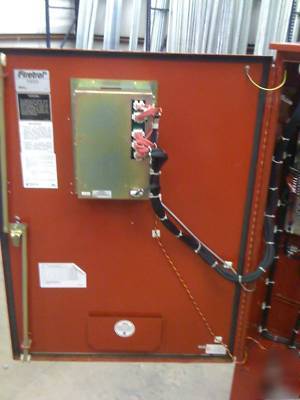

* Door mounted display/interface panel featuring a 40 Character Vacuum Fluorescent Display, Membrane Type User Control Pushbuttons and easy to read LED Indicators
* Single handle Isolating Disconnect Switch/Circuit Breaker mechanism
* Transition Contactor and Power Resistors (FTA1500 only)
* Transition Contactor and Autotransformer (FTA1800 only)
* Firetrol SS/3 Solid State SCR Starter (FTA1900 only)
* TRANSFER SWITCH NORMAL LED (If unit ordered with Automatic Power Transfer Switch)
* TRANSFER SWITCH EMERGENCY LED (If unit ordered with Automatic Power Transfer Switch)
* EMERGENCY ISOLATING SWITCH OFF LED (If unit ordered with Automatic Power Transfer Switch)
* Minimum Run Timer/Off Delay Timer
* Daylight Savings Time Option
* USB Host Controller and Port
* Solid State Pressure Transducer
* True RMS Metering with simultaneous 3 phase display of amps and volts
* Soft Starter Overtemp message (FTA1900 only)
* Low Suction Pressure message
* High Speed Open Serial Communications Port
* Suitable for use as Service Equipment
Features Specific to the FTA1900-AM75B:
1900 - solid-state soft start/stop
A - Automatic start with timed permissive stop after minimum run time and manual start with manual stop, fi eld convertible to automatic start and manual start with manual stop only
M - Standard short circuit rating 100,000 Amperes RMS Sym. at 200 - 600 V
B - 3-Phase 440-480 Volt, 60 Hertz (460 V)
