Automatic battery charging regulator - 0 to 1.5 amp

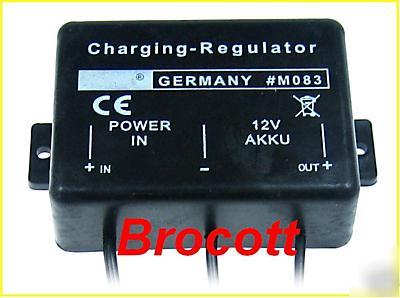

Electronic Battery Charging Regulator
This module supervises the charging state of a 12 V car or liesure battery and starts charging automatically whenever there is a drop in voltage. When fully charged the module will switch off and supervise the battery. Suitable for lighter duty work such as in alarm systems, weekend-houses, small solar panels etc. in order to keep batteries constantly charged without the risk of overcharging. Also suitable as charging regulator for solar panels. Charging current maximum 1,5 A. Short circuit and reverse current proof. Automatic charging interruption with battery voltage of approx. 13,8...14,2 V.
* Input voltage: 16...20VDC (solar panel or power supply)
* Output: regulated for charging a 12V battery to max. 13.8...14.2V
* Output current: 0...1.5A, depending on the charging state of the battery
* Dimensions: approx. 60 x 46 x 20 mm
