Atas optic 2 programmable large volume gc injector
Atas Optic 2 Programmable Large Volume GC Injector
Optic 2 is the world's most advanced injection system and is designed to combine excellent performance with a dramatic improvement in analytical flexibility.
The Optic 2, when correctly set up, offers complete absence of sample discrimination. Reproducibility is comparable to on-column injection, but offers excellent tolerance of "dirty" samples. Thermal degradation is less severe than with conventional hot split and splitless injectors and the analyst has much greater control over the way in which the sample is treated.
The Optic 2 can be used for hot split, hot splitless, cold split, cold splitless and on-column injection. It is also able to offer injection modes which have no parallel where traditional injectors are concerned. Facilities such as large volume sampling, thermal desorption and pyrolysis are standard features.
Optic 2 offers far greater control over the fate of the sample in the injector than normal systems. When the sample is injected, the analyst can select the temperature and, if the equipment is an Optic 2-200, can also select the injector pressure. It is even possible to inject under static gas flow conditions. Consequently, it is possible to conceive many novel approaches to sample injection.
Optic 2 is designed to be compatible with most popular makes and models of GC and GC-MS. Once installed, Optic 2 should be fully compatible with the auto-sampler. Please contact your local Optic 2 distributor if you have any questions concerning compatibility.

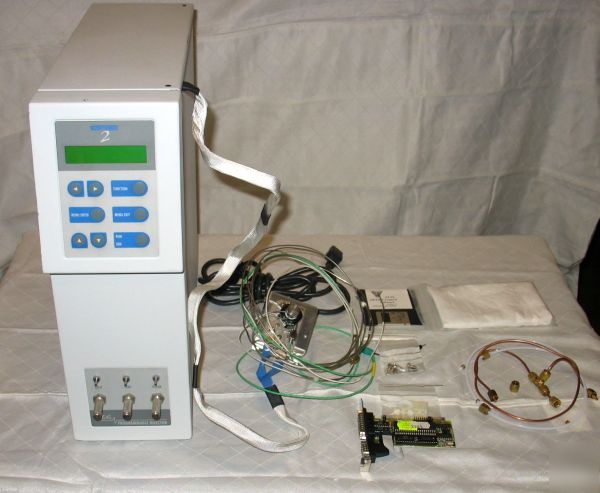

Includes: Control Unit, Injector, Software, Manual & RS232 Card as Shown.
Equipped with Optional: Carrier Gas Pressure & Auxiliary Gas Pressure
Powers On and Initializes. Believed to work although we cannot test it fully.
Price for a new one is over $21,000
