Topcon gts-802A robotic total station 4 surveying
Topcon GTS-802A full robotic Total Station with 3 angle accuracy. This unit has two type of remote communication optical (RC-2) and Satel Radios. GTS-802A gives you access to the best, most-productive measuring methods available and ideal for a wide range of applications and with its innovative Servo, Autolock , and Robotic technology, allows you and your survey crews to survey more productively than ever before. When you invest in the Topcon GTS-802A you get more than just an advanced survey instrument, because the GTS-802A is really a complete Integrated surveying solution which features the MS-DOS operating system with the ability to run TDS Survey Pro Software on-board. It comes standard with 2 MB of program memory and 2 MB of internal data memory. A PCMCIA port is also standard for external memory cards. The GTS-800 series features a large graphical display and a full alpha/numeric keyboard. Its high-performance motors rotate the 800 at an astounding 50 degrees per second and fast servomotors will track the prism at a speed of almost 20 MPH (5 degrees per second) for faster target acquisition. It also features a new Jog/Shuttle mechanism replaces the clamp/tangent screw for high-speed rotation and accurate target sighting. Data transfer to a personal computer or any data collectors is possible with the RS-232C interface. Unit is featured with IP-65 Waterproof/Dustproof rating, which is suitable for use in the toughest environments. Topcon s exclusive optical data link eliminates the hassles and headaches of radio-controlled robotics. No interfering frequencies, no FCC licensing issues. With the addition of the RC-2II "Fast-Trak" Remote Location System, The GTS-802A becomes a complete robotic one-man surveying system. Add a Topcon FC-1000 controller with Bluetooth wireless technology to connect to the RC-2II, and lose the controller cable all together for the ultimate radio-free, cable-free, one-man surveying operation.

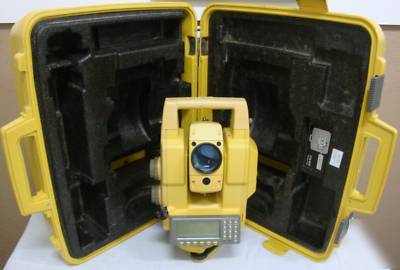

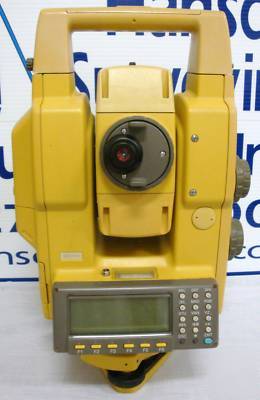

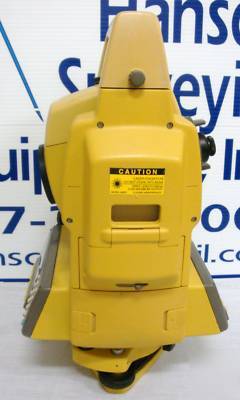

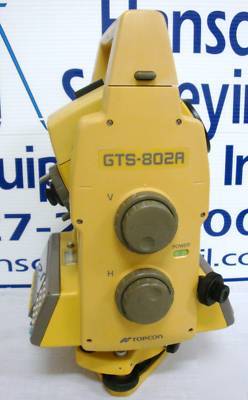

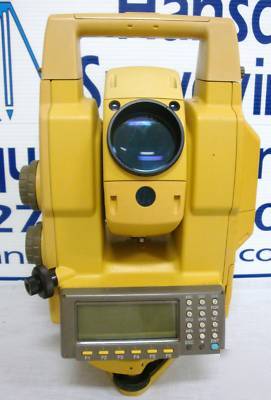

* GTS-802A Full Robotic Total Station

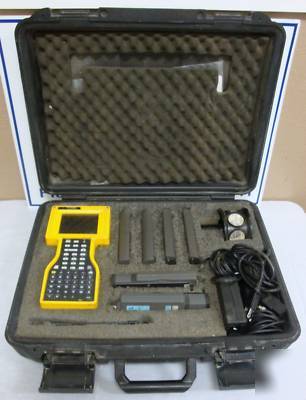

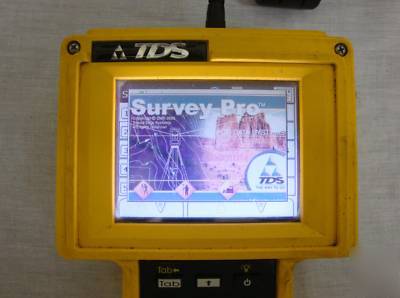

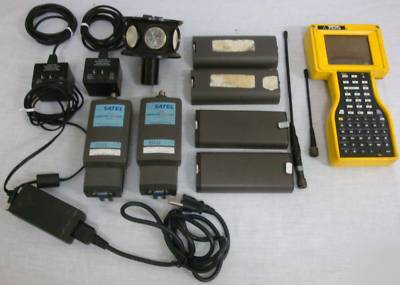

* TDS Ranger Data Collector with Survey Pro!!
* 2x Satelline 3AS(d) Radios
* 4x Satelline 3AS(d) Batteries

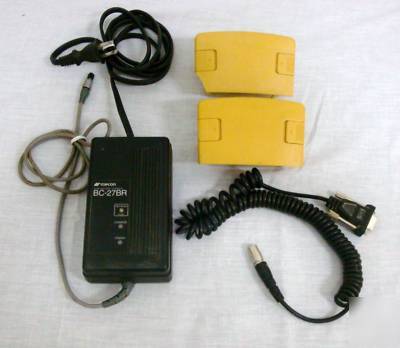

* 2x Satelline 3AS(d) Battery Charger
Distance measurement: 1Prism: 2.200m/7.200ft, 3Prism: 2.800m/9.200ft
Distance measurement precision: +/-(2mm + 2ppm)
Distance measuring time: 0.2s in tracking mode
Distance measuring time: 0.8s in coarse mode
Distance measuring time: 1.2s and 3s initial in fine mode

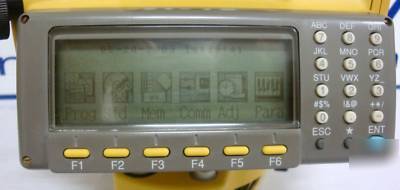

Display: Single, 2 side graphic LCD, Max. 40chr. X 10 lines
