New 400W metal halide hid ballast kit philips advance

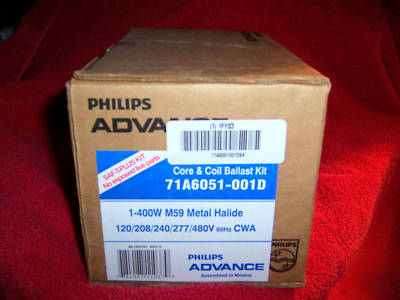

HID Ballast Kit, Metal Halide, 400W
HID Ballast Kit, Core And Coil, Metal Halide Lamp Type, Number of Lamps 1, 400 Lamp Watts, M59 ANSI Code, 460 Input Watts, 120/208/240/277/480 Input Voltage, 60 Hz, 4.1 Operating Amps @ 120V, 2.3 Operating Amps @ 208V, 2 Operating Amps @ 240V

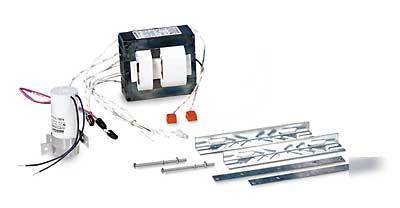

Capacitor, Core And Coil, Mounting Bracket and Hardware
* HID Core and Coil Ballast Kits
* Ballasts are vacuum impregnated to help eliminate premature failure and voltage breakdown, for longer life and quieter operation.
* Kits are compatible with most fixture designs. Include: capacitor, core and coil, igniter (where applicable), mounting bracket, and hardware. No live parts for safety. Use only capacitor and igniter included with kit. Pulse Start-These metal halide lamps have no starting electrodes, and an open circuit voltage (OCV) of approximately 2 times the lamp voltage. Lamps have an igniter that provides a high voltage starting pulse directly across the main electrodes. When the lamp s arc is established, the igniter stops delivering pulses and the lamp comes up to full brightness. Probe Start-These metal halide lamps have an electrode located at 1 end of the arc tube to assist in lamp starting. Require an OCV of approximately 2 times the lamp voltage to start the arc.
* Uses: For mounting in HID fixtures that use metal halide and high-pressure sodium lamps.
* Min. starting temp.: -20 DegreeF (metal halide); -40 DegreeF (high-pressure sodium)
* Number of lamps serviced: 1 (except No. 6V623 services 2 lamps)
