Data products MC051/0 power board 220 volt 50 hz power
Data Products MC051/0 Power Board 220 Volt 50 hz Power

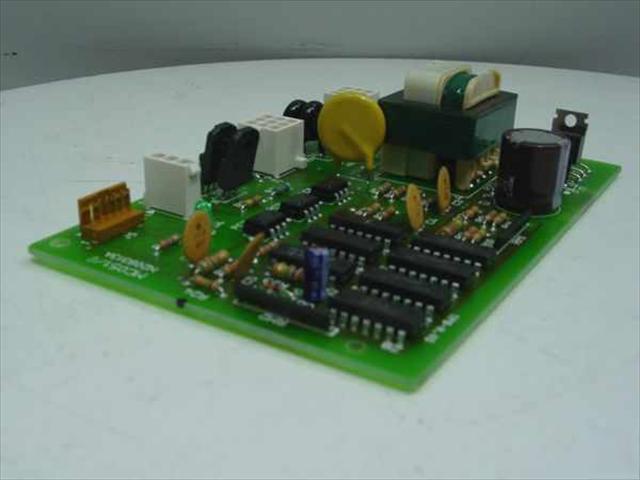

Data Products MC051/0 Power Board 220 Volt 50 Hz Power Input
* It is clearly a Switch Mode Power Supply (SMPS) for a motor and a heater. Laminating machine?
* There are a few nice components on the board:
* Two extremely high resistance resistors in glass encapsulation. They are marked 302M, that could be 3000 Mohm = 3 Gohm.
* There are also two 600 V 5 A Triacs, a bi-directional SCR.
* Some voltage transient absorbers and three opto-couplers, four good fuses and some various TTL.
