> 50X rp tnc male crimp connetor for RG178 RG316 RG174

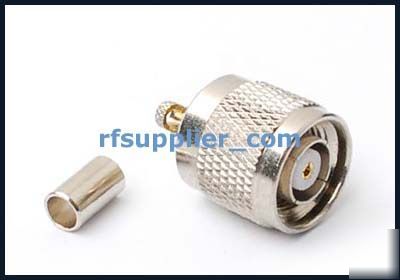

50X rp tnc male crimp connetor for RG178 RG316 RG174
50 PCS RP TNC male crimp for RG178 RG316 RG174 LMR100
Suitable cable: RG178 RG316 RG174 LMR100
Temp.range.................. -65 +165 C (PE Cable -40 +85 C)
Vibration....................... MIL-STD-202, Method 213
Impedance..................... 50
Frequency Range ............DC 11GHz
Working Voltage............. 500V max
Withstand Voltage.......... 1500V rms
Center Contact............... 1.5 m
Outer Contact ................ 1 m
Insulation resistance........ 5000 M
VSWR Straight................ 1.22
Right angle ...................... 1.30
Durability(mating)............. 500 cycles
shell ..................brass..................nickel plated
contact pin .........brass................. gold or silver plated
socket................ beryllium ............gold or silver plated
elastic contact .....beryllium............. gold plated
crimp ferrule .......copper alloy........... nickel plated
o-ring sealing ......6146 silastic
