> Waters 486 variable wavelength uv / vis detector
Waters 486 variable wavelength uv / vis detector

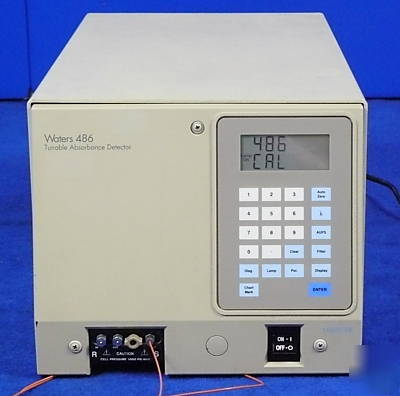

Waters 486 Tunable Absorbance Detector Variable Wavelength UV / VIS Detector
Waters 486 Tunable Absorbance Detector UV / VIS Detector Description
The 486 provides a usable light intensity over the wavelength range of 190-600 nanometres (nm), Although its primary use is in the ultraviolet wavelength range between 190 and 380 nanometres. The maximum sensitivity of the instrument is 0.001 absorbance units full scale (AUFS).
Waters 486 Tunable Absorbance Detector UV / VIS Detector Features
* Easy to use operator interface
* Self-calibration to ensure wavelength accuracy
* Battery backup to retain parameter settings when the detector is powered down or during power interruptions
* The patented Taper-Cell flow design switch reduces refractive index interference with the absorbance signal
* Optional cells: Non-metallic, Semi-prep, Micro bore, High pressure (A cell optimized for operation in LC/MS)
* Lamp shut-off to lengthen usable lamp life
* User selectable chart mark on IV integrator output (standard on 10mV)
* Wavelength scanning for determination of optimal wavelength
* Diagnostic routines to verify proper functioning
* A modular design for easy servicing
Waters 486 Tunable Absorbance Detector UV / VIS Detector Dimensions
