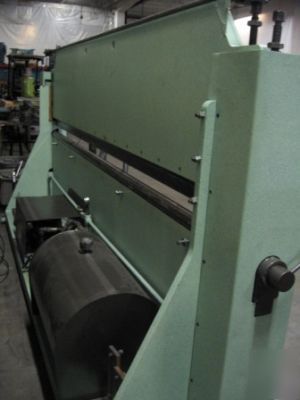

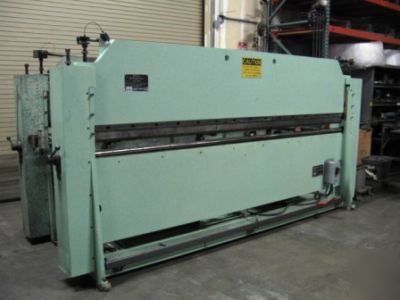

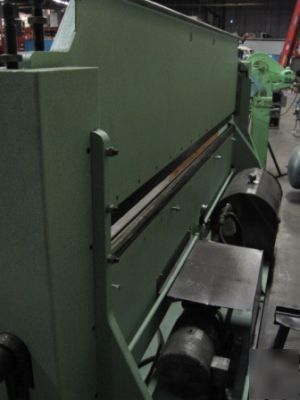

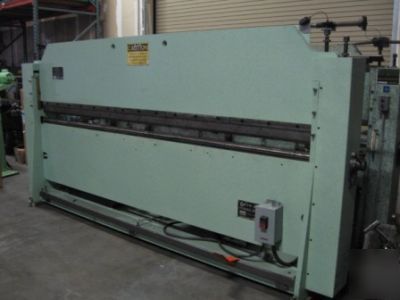

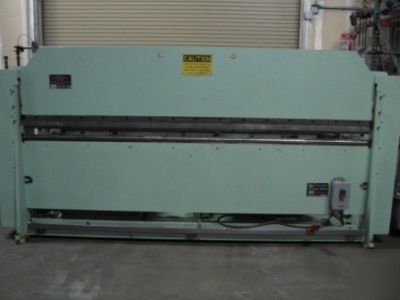

Roto-die #10 hydraulic bending brake

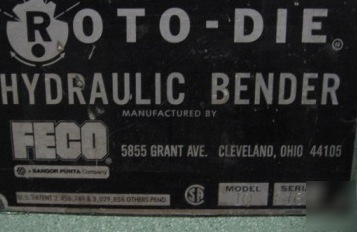

ROTO-DIE, No. 10 HYDRAULIC BENDER
You tube video of machine under power: http:// /watch?v=rUTL-U8qCOU
BENDING CAPACITY 7/8" DIE OPENING: =120" X 16 GAUGE
CAPACITY WITH ANGLE INSERT: =72" X 10 GAUGE
OVERALL DIMENSIONS: =12'1" LONG
BED AND RAM PLATES: =2-1/4" THICK
FRONT & REAR SUPPORT ARM RANGE: =39"
(1) NO. 37 ROTO-DIE (WITH 4 FORMING OPERATIONS)
(1) UPPER FORMING PUNCH 85-DEGREE
(1) UPPER HEMMING PUNCH 30-DEGREE/HEMMING
* SINGLE STATION DEPTH-OF-STROKE ADJUSTMENT FEATURE
