> Etc-211000 electronic temperature control 120/240V

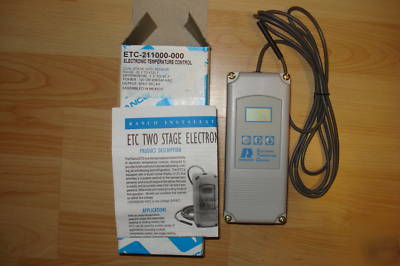

Etc-211000 electronic temperature control 120/240V
The Ranco ETC is a micorprocessor based temperature controller suitable for switching 120Volts at up to 16Amps for heating or cooling applications making it suitable for a wide range of applications. This is a great universal controller for any application where switching 120Volts or temperatures outside that of a normal home thermostat is required. The sensor with an 8' foot cable and instructions are included with the unit.
The different between 211000 and 111000 are 211000 is 2-stage and 111000 is 1 (single) stage.
Specifications: for ETC 111000
1 (single) StageTemperature Setpoint Range: -30 to 220 F
Input Voltage: 120VAC or 240VAC
Sensor: Thermistor, 2" long x 1/4"dia with 8' cable (included)
Ambient humidity: 0 to 95% RH, non-condensing
Dimensions: 6.52" high x 2.7" wide x 2.48" deep
Normally Open (NO): 16 Amps @120Volts
Normally Closed (NC): 8 Amps @120Volts
