Automatic silver gold female n type bulkhead connector

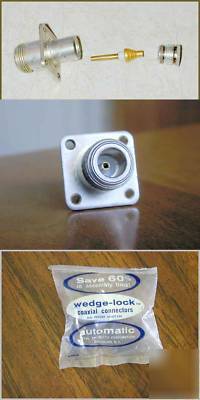

** Automatic Silver & Gold Plated Female N Type Bulkhead Coaxial Connector **
Automatic N series connectors are general-purpose, medium size connectors, with a frequency range of DC 11 GHz and 50 ohm impedance, designed to MIL-PRF-39012 requirements. Each connector features a solderless wedgelock cable connection with O-ring seals, silver plated bodies and gold plated center contacts.
I found this description in the manufacturers online catalog:
automatic.jpg n-type-connector2 picture by mikefam
and here's a link to that catalog online for further specifications:
http:// /pdf/AutoN.pdf
Feel free to email if you have any questions and I will get back to you ASAP.
n-type-connectors.jpg n-type-connector1 picture by mikefam
