Trinocular microscope double bar microscope w/ ccd came
Trinocular Microscope Double Bar Microscope w/ CCD camera
Brand New Trinocular Microscope Double Bar Microscope w/ CCD Camera, video adaptor ringlight

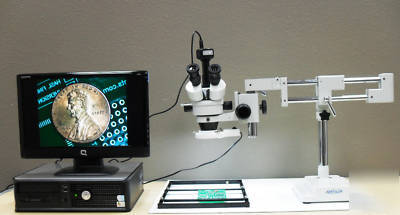

This is a brand new, SZM7045TR Double Bar boom stand microscope w/ CCD camera. High quality stereo trinocular microscope with Boom Stand. Great for working and viewing your component w/ a video output to plug into a regular or LCD TV. Specially designed to inspect component on your PCB boards with fine pitch IC's and other applications.
Unlike a compound microscope that offers a 2-dimensional image, stereo microscopes give the viewer an erect (upright and un-reversed) stereoscopic (3-dimensional) image. This is particularly useful for biologists performing dissections, technicians repairing circuit boards, paleontologists cleaning and examining fossils, or anyone who needs to work with their hands on small objects.
* Adjustable rubber eye guards.
* Video/camera trinocular port. Video and photo adapters optional. Matching high resolution color CCD video camera available.
* Boom stand included for maximum versatility and extended working area. Great for working with large circuit boards.
* Fluorescent ring light is included. Even and bright illumination onto the working area.
* Heavy-duty quality metal construction with both of the microscope body and boom stand.
* High resolution CCD color video camera, 1/3" CCD sensor, 420 TV Lines, 768(H)x494(V) pixels, 525 interlaced scan, 60 frames/second, AGC on/off, SNR>46dB, Gamma=0.45, 1.5 Lux. 12VDC power supply, 1.85W.
* CCD camera and video adaptor
