Square d nema size 4 starter, motor logic, s unused

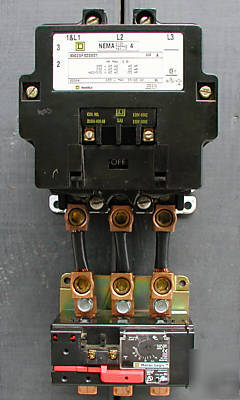

This is a perfect condition Square D NEMA 4 starter. I have listed it as used because I can not definitely say it is new, although there is no sign of use other than mounting. It appears to have been installed but not energized.

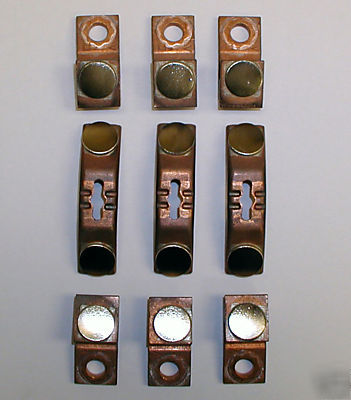

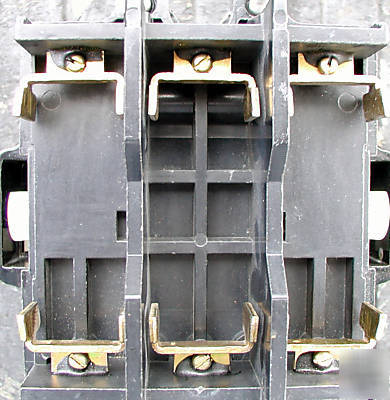

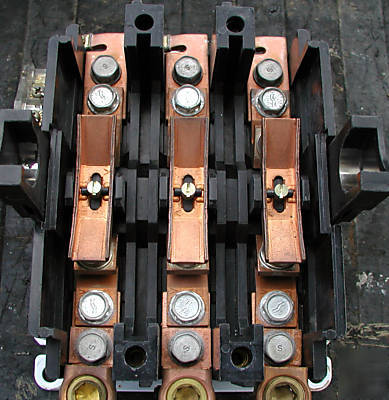

The contactor is rated at 135 continuous amps, 50 hp at 230 volts, and 100 hp at 460/ 575 volts. I have brushed the contacts to reveal true condition ( not filed or sanded ). I rate the contacts at 99 %. There is no arc dust and no sign of overheating of the contacts or in the contactor. Honestly, this contactor looks like it was never used. Look at the photos; all are actual photos of this starter.
The overload is a Class 9065 Type SS410 Series C Class 10 Solid State Motor Logic adjustable from 45 amps to 135 amps. It features phase loss and unbalance protection, is ambient insensative and self powered.
The coil is # 31091-400-38, 120 VAC/60Hz, 110 VAC/50Hz.
There is one normally open auxillary contact and mounts for three more.
The starter has been tested and operates perfectly.
