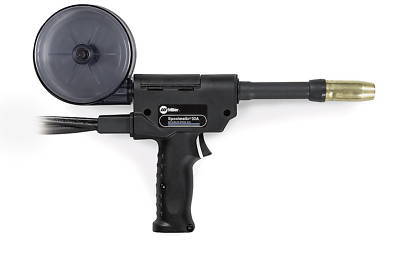

New miller spoolmatic 30A spoolgun 130831
For demanding applications, the Spoolmatic 30A feeder gun offers optimum performance for aluminum repair work. Engineered for operator comfort, the Spoolmatic 30A gives you the portability and 30 ft ( 9m ) cable assembly to access those hard-to-reach welds. Rated at 200 amps and 100% duty cycle, the gun has the muscle to handle tough production schedules.
* MIG (GMAW) with aluminum and other soft alloy wires.
Light and Heavy Industrial Applications:
( # 130 831 ) 30 ft. (9 m) cable
aluminum wire and hard wire up to .045" ( 1.1 mm )
Engineered for operator comfort, the Spoolmatic 30A gives you portability and a 30 ft cable assembly to access those hard-to-reach welds.
Adjustable barrel assembly allows the operator to vary the contact tip-to-nozzle position easily.
Built-in gas valve eliminates the need to purge long gas lines.
2-stage trigger includes gas preflow.
Wire speed adjustment on the gun handle saves time.
Reversible drive roll saves time and money.
Quick-tips for easy changeover.
Electrode Wire Dia Capacity .023 - 1/16 in (0.6 - 1.6 mm) aluminum wire and hard wire up .045 in (1.1 mm)
Wire Speed 70 - 875 IPM (1.8 - 22.2 m/min)
Max Spool Size Capacity 4 in (102 mm)
Net Weight 14 lb with cable assembly
Spare Spool Canister Canister accommodates 4 in (102 mm) spools of wire. Can be loaded with other popular wires to save time in changeover. 132230
Spoolmatic 30A Extension Hose and Cable Kit - 25 ft
Extends leads, etc. between Spoolmatic 30A gun and power source. 132228
Spoolmatic 30A Extension Hose and Cable Kit - 50 ft Extends leads, etc. between Spoolmatic 30A gun and power source. 132229
ROLL,DRIVE VK GROOVE .030-1/16 WIRE 136135
SX Flex Head Kit For .030-1/16 in wire. Used in place of the standard straight barrel. Flexible head tube bends 60 degrees in any direction for easier joint access and improved operator comfort. Comes with two Teflon liners and one contact tip for each wire size listed. 131104
SX-A 50-Degree Curved Barrels 6 in (152 mm) Used with .030-1/16 in (0.8-1.6 mm) wire. Kits supplied with two liners that accommodate all wire sizes. 147175
WC-115A Weld Control without Contactor Operates on 115 VAC input power, and is designed primarily for CC/DC power sources. It can also be used with CV power sources or DC engine drives supplying 115 VAC. When used with a CC source, the control circuit functions in a voltage-sensing mode. 137546
WC-24 Weld Control The WC-24 easily mounts directly on the power source. It's designed for use with Miller CV power sources supplying 24 VAC and 14-pin receptacles. Includes a board-mounted potentiometer that can alter motor acceleration rate to optimize arc starting. 137549
