> Metro C515-pfc-4 proofing cabinet, heated, non-insulate

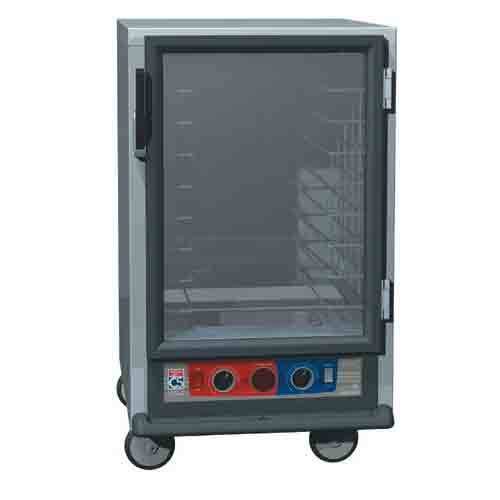

Metro C515-pfc-4 proofing cabinet, heated, non-insulate
Proofing Cabinet, Heated, Non-Insulated, Clear Full Door, 1/2 Height, Fixed Wire Slides, C5 1 Series
C5 1 Series Proofing Cabinet, mobile, 1/2 height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 190 F, fixed wire slides on 3" centers, (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters, aluminum, 120v/60/1, 1440 watts, 12 amps, NEMA 5-15P, UL, CUL, NSF
* Control: Three holding modules are available. All feature an easy-to-read digital thermometer, recessed control dials, a master on/off switch, and power indicator lights
* Proofing Module: For proofing applications only. Individual analog controls for temperature and humidity levels
* Performance: All modules provide fast heat-up and recovery through a thermostatically controlled, forced air heating system
* Doors: Clear polycarbonate doors provide visibility of the contents of the cabinet without the heat loss associated with opening the door
* Capacity: Three slide styles provide maximum holding capacity.
* Fixed Wire: Fixed slides hold 18"x26" sheet, 12"x20" steam table, 2/1 GN, or 1/1 GN pans on 3" increments
* Removable Module: All modules are removable, without tools, for easy cleaning of the cabinet interior. Future module upgrades or changes can occur without cabinet body replacement
* Reliability: Reliability and durability are designed into every C5. High quality components provide a long life of worry-free use
* Cabinet Material: .063" aluminum, natural interior, brushed exterior with .125" (3.2mm) aluminum chassis
* Casters: Four casters with 5" donut neoprene wheel, double ball bearing swivel, ball bearing axel, nickel plated, two with brake
* Clear Doors: Extruded aluminum powder coated frame with .090" polycarbonate window
* Hinges: Field reversible, double hinged, 180 degree swing, with long-life
* Gaskets: High temperature, door mounted, Santoprene gaskets
* Latches: Polymer, high-strength, magnetic pull latch with lever action
* 120v/60/a, 2000 watts, 20 amps, NEMA 5-20P
* Manufacturer: Intermetro Industries Corporation
