Charmilles model FORM4-lc ram type die sinker edm mach.

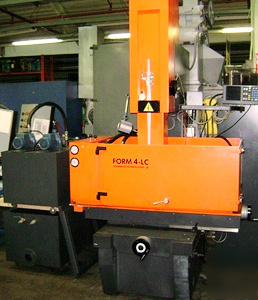

Charmilles Model Form4-LC Ram Type Die Sinker EDM Machine
referencing Charmilles Model Form4-LC EDM Machine
Charmilles Model Form4-LC Ram Type Die Sinker EDM Machine
Technical Specifications: * Item #7850-505
* Voltage: 220-415-440V/3PH/60HZ
* Machine table: 31.5" x 19.7"
* Travels: X=19.7"/ Y=15.8"/ Z=10.3"
* Work tank: 49.2" x 27.6" x 19.7"
* Distance work table to quill plate: 5.9"-28.7"
* Workpiece weight: 3300 lbs. maximum
* Electrode weight: 550 lbs maximum
* Machine dimensions: 59" x 63" x 106" (h)
* Impulse generator: 75 amp
* Control cabinet dimensions: 21.7" x 21.7"
* Dielectric system tank capacity: 185 gallon
* Estimated weight: 7055 lbs.
EQUIPPED WITH: * Form4-LC control cabinet
* Accu-Rite 3-Axis digital readout
Contact Cliff Davis at 401.724.3200 during normal business hours (EST) or email ****@goldmachinery.com referencing 7850-505.
