Martin yale intimus 959AF air feed paper folder

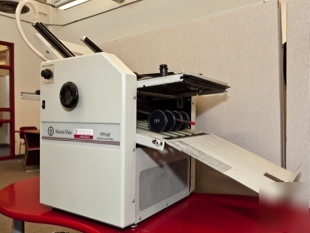

Martin Yale Intimus 959AF Air Feed Paper Folder
The Martin Yale 959AF Airfeed Autofolder is designed for folding coated or documents that are printed on both sides. The air feed mechanism eliminated some of the friction marks that can be produced by other friction feed paper folders. Additionally, it helps for feeding heavier stocks, coated papers or other documents that traditional paper folders have difficulty with. The 959AF is capable of folding documents as large as 11" x 17" in size and operates at a variable speed of up to 18,000 sheets per hour allowing you to complete even the largest jobs in no time at all. Additionally, the Intimus 959AF autofolder can also be configured to perforate or score your documents making it an ideal solution for a small, medium or large sized printer that needs to combine functionality to be able to produce highly customized jobs. Check out the Martin Yale Intimus 959AF Paper folding machine today.
This folder was recently serviced and is in perfect working order. Folds coated or two-sided documents without smearing or slipping Automatically feeds, folds, and collects a stack of documents - also slits, scores and perforates Bottom feed allows for continuous reload of documents without stopping the machine Simplified adjustment for folding 8 1/2" x 11", 8 1/2" x 14" and 11" x 17" sheets Creates a variety of different folds: letter, half, z-fold, double parallel, right-angle, baronial and custom folds Adjustable within a fold range of 1 3/4" to 13" on the 1st fold and 2nd fold to allow for customized folds Operates at a variable speed of up to 18,000 sheets per hour Handles sheet sizes from 3" x 3 1/4" to 14" x 18" Handles paper from 16 lb. bond to 70 lb. Bristol Quick release journal shafts facilitate easy set-up for perforating, scoring and slitting Includes on 7-tooth-per-inch perforating wheel and 2 scoring wheels Optional 3 and 14-tooth-per-inch perforating wheels and slitting wheel also available Dimensions: 43" x 24" x 32" Weight: 220 lbs. UPC Code: 0-11991-09595-1
