Hp air cascade bottle rack

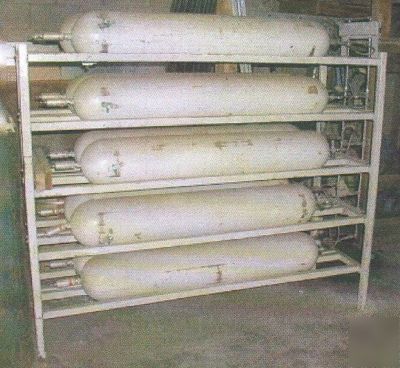

This is a bank of ten high-pressure bottles with rack and plumbing. They can be cascaded together or isolated from each other as needed.
Each bottle is nine inches in diameter and is about 4-1/2 feet long. The bottles are round at both ends. One side of the rack is all plumbed together with valves and small gages at each bottle.
The opposite ends of the bottles have pressure relief valves.
Each bottle has an additional small valve on its side.
The rack that the bottles are on is 76-5/8 inches wide, 59-7/8 inches high, and 25 inches deep.
Local Pick-up is preferred if you live on the Island of Oahu, Hawaii
